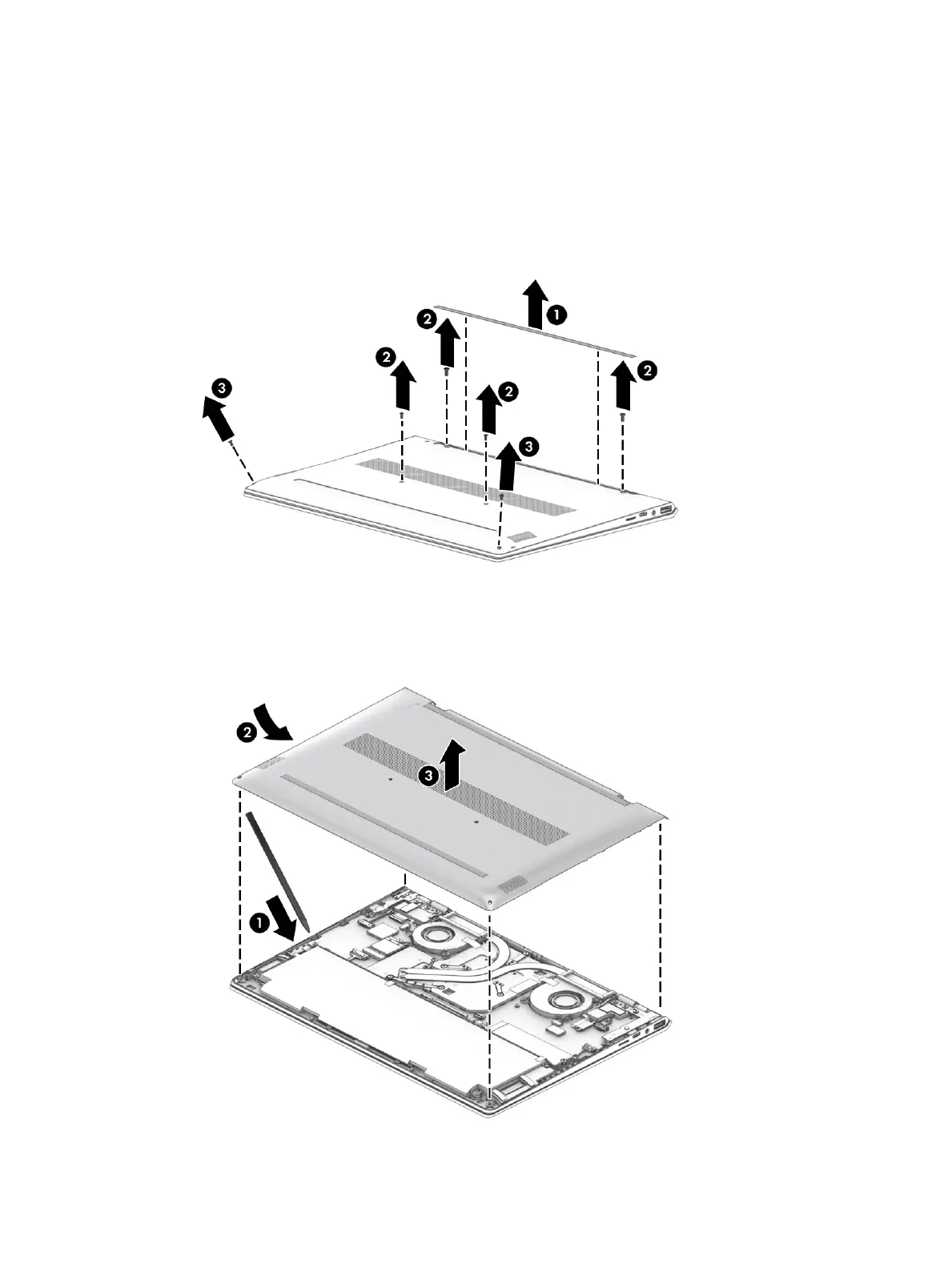

1. Remove the computer rubber foot strip (1).
The rubber foot strip is available using spare part numbers 928496-001 (in natural silver nish) and
928495-001 (in silk gold nish).
2. Remove the following screws that secure the bottom cover to the computer:
(2) Four Phillips PM2.0×6.1 screws
(3) Two Torx5 M2.0×3.2 screws
3. Insert a case utility tool (1) or similar thin, plastic tool into the front corners of the bottom cover.
4. Separate the bottom cover (2) from the keyboard/top cover.
5. Remove the bottom cover (3).
Component replacement procedures 31
