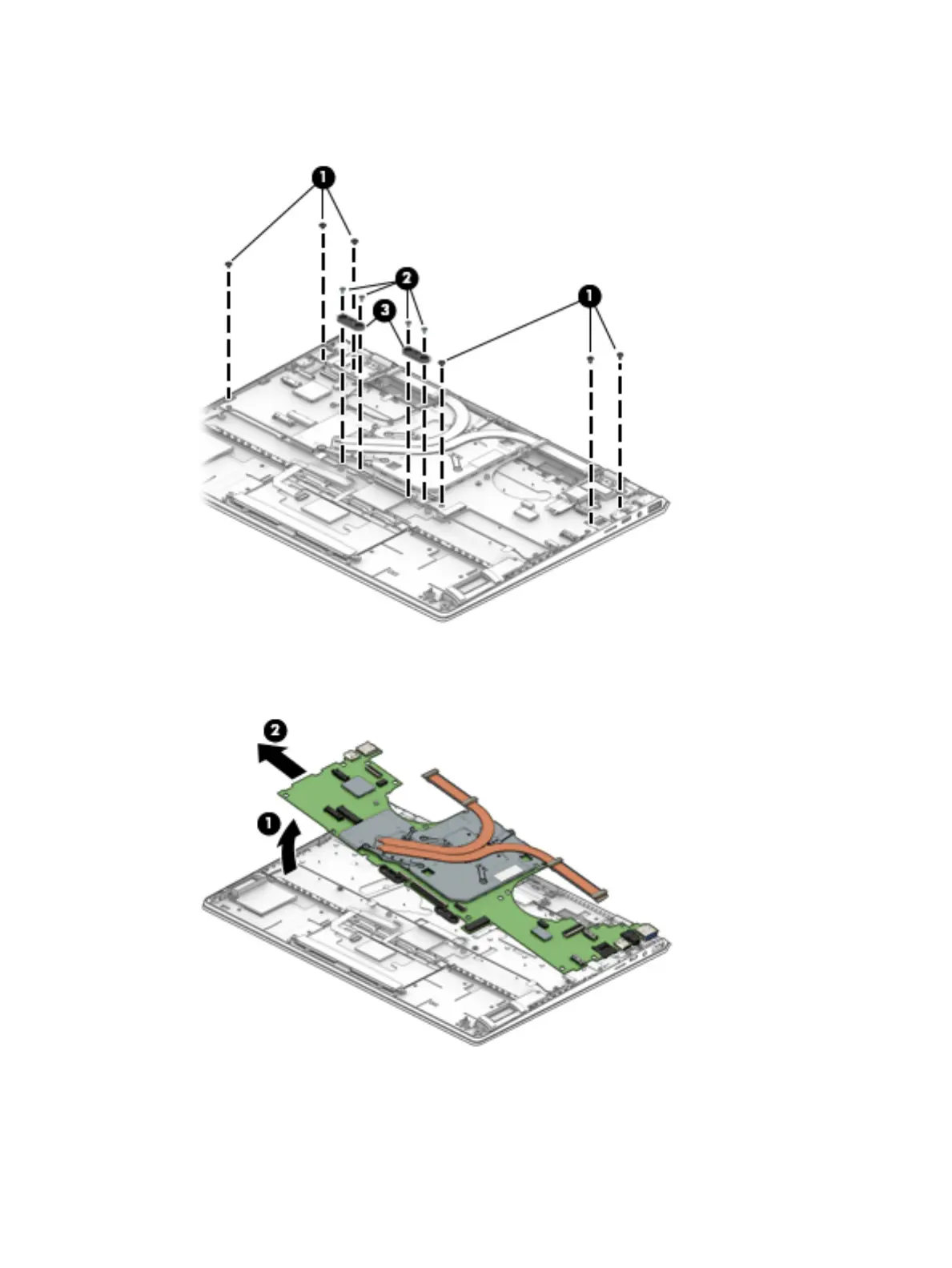

8. Remove the system board retention hooks (3).
The system board retention hooks are available using spare part number 928493-001.
9. Lift the left side of the system board (1) until it rests at an angle.
10. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
Component replacement procedures 51
