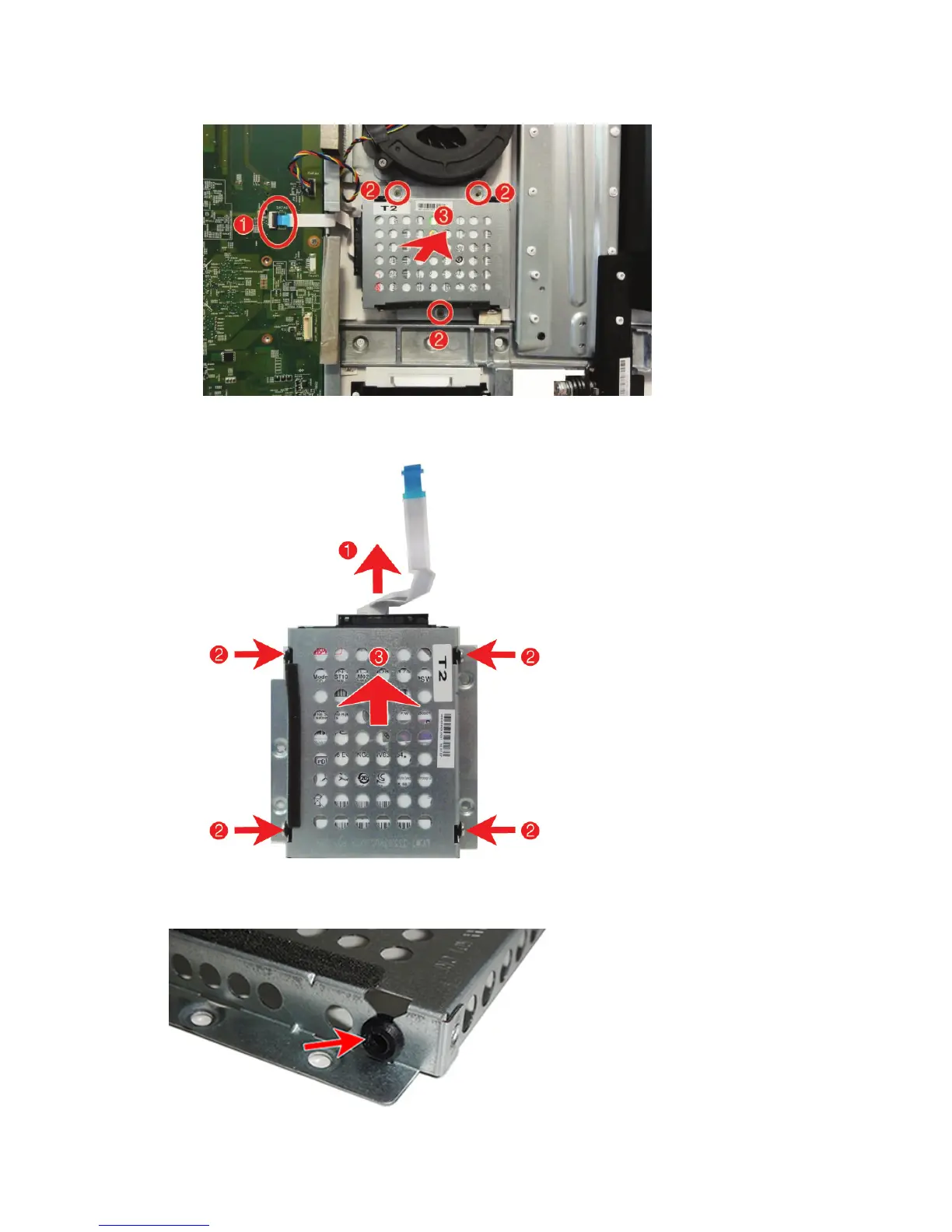

7. Lift the hard drive assembly out of the computer (3).
8. Disconnect the hard drive connector cable from the hard drive (1), remove the four screws that secure
the hard drive to the bracket (2), and slide the drive out of the bracket (3).
To install a hard drive, reverse the removal procedures. Make sure all four rubber screw grommets are
installed correctly for each screw in the bracket as shown in the following image.
Hard drive 31
