OSD (On-Screen Display) board

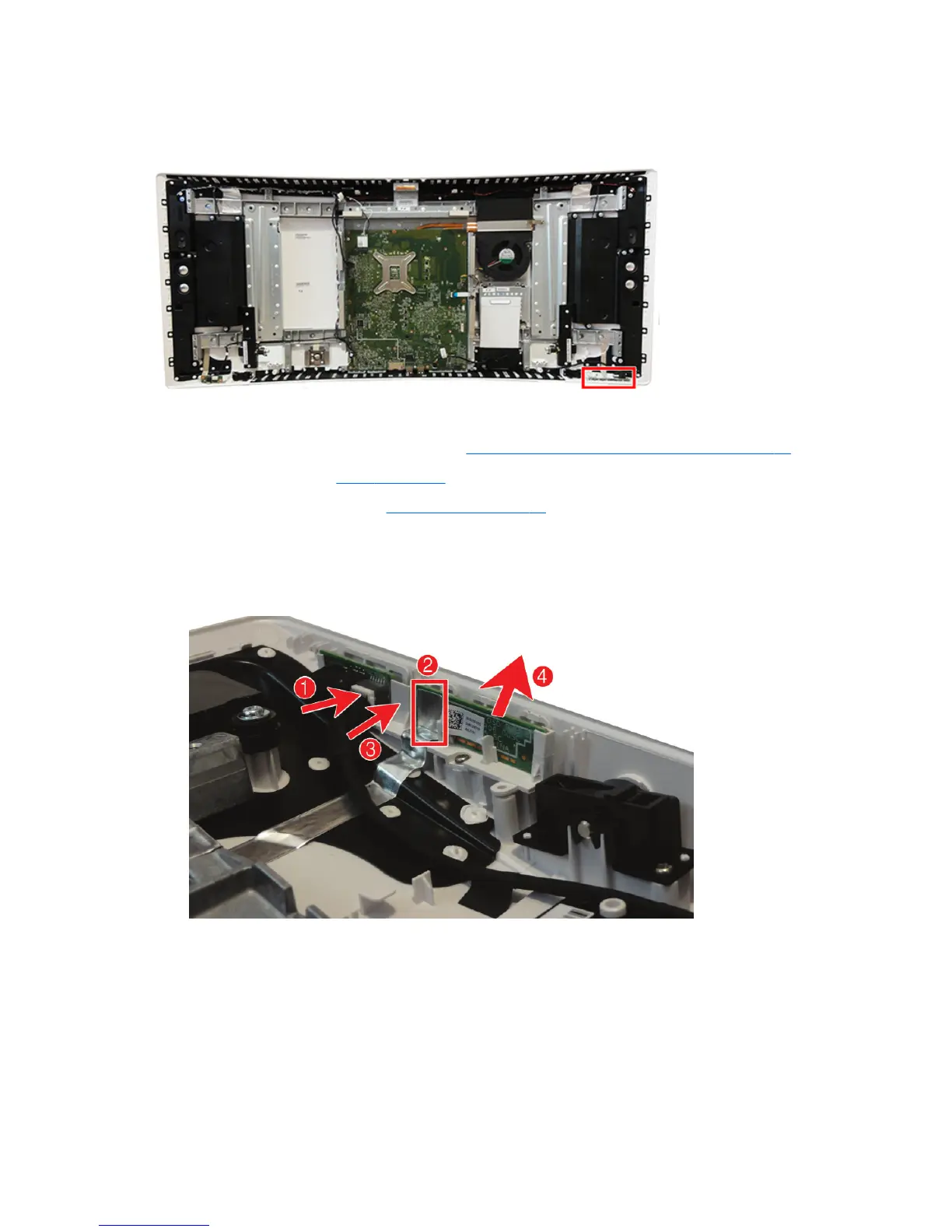

The OSD board is located near the bottom, right side of the computer.
To remove the OSD board:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 17).
2. Remove the bezel (see Bezel on page 23).
3. Remove the display panel (see Display panel on page 26).
4. Disconnect the cable from the board (1).
5. Remove the tape from the board (2).
6. While pulling the tab away from the board (3), lift the board out of the computer (4).
To install the OSD board, reverse the removal procedures.
32 Chapter 4 Removal and Replacement Procedures
