a. Position the display panel assembly with the panel facing down and the bottom edge of the assembly
toward you.

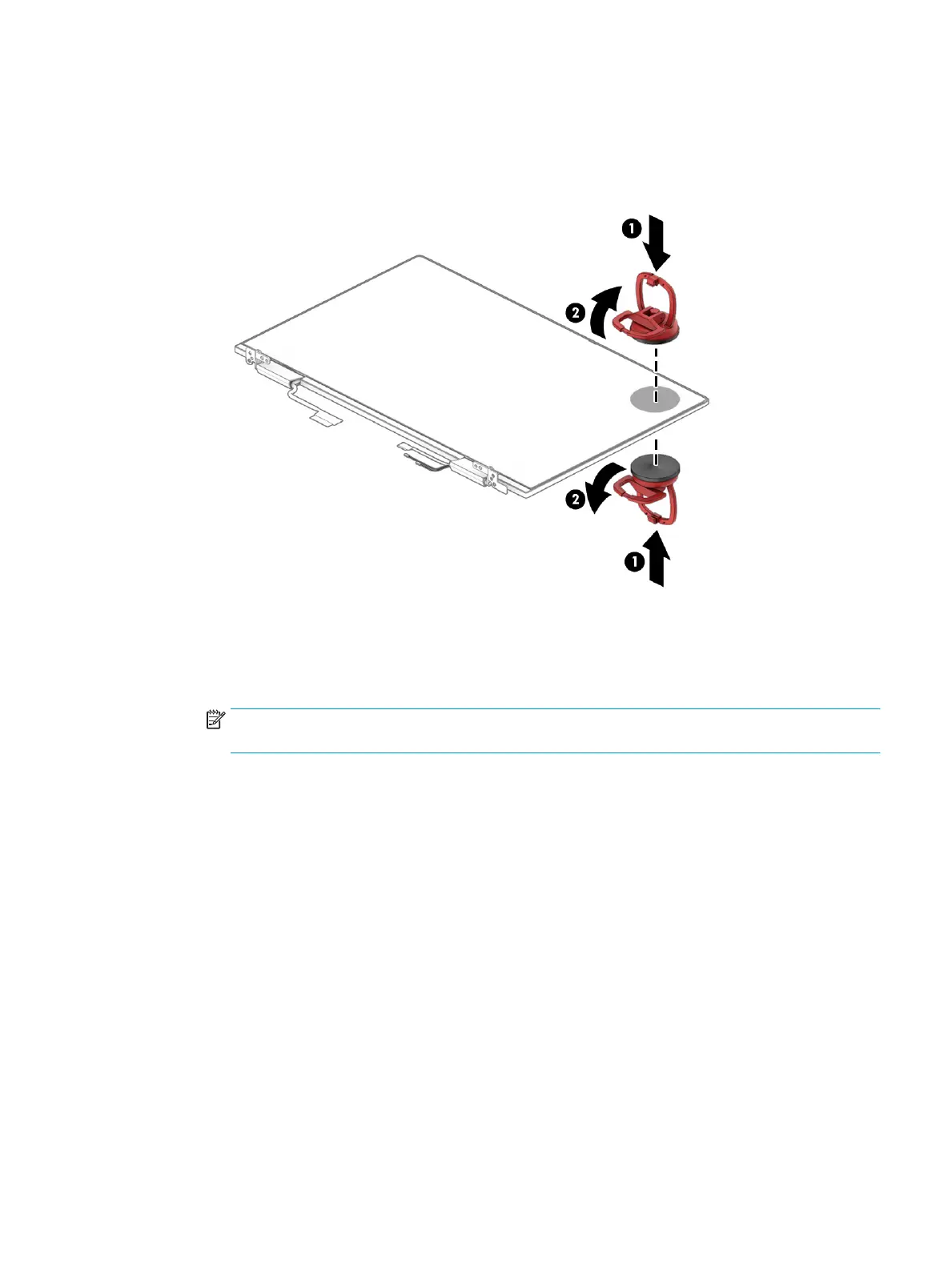

b. Attach two suction cups (1) to the display assembly as shown in the following illustration.
c. Secure the suction cups to the display assembly by swinging the handles (2) into position.
d. Position the display panel assembly with the panel facing up and the bottom edge of the assembly
toward you.
e. Use a case utility tool (1) or similar thin plastic tool to separate the top edge of the display panel
assembly from the display back cover.
NOTE: Slow, steady pressure is required when working with the pull-to-release tabs in substep f.
Pulling too fast can result in the tabs breaking and the release action being incomplete.
f. Grasp the pull-to-release tabs (2) located in the top corners of the display panel assembly and pull
them (3) as far as they will release.
Component replacement procedures 43
