3. Disconnect the battery cable from the system board (see Battery on page 43).

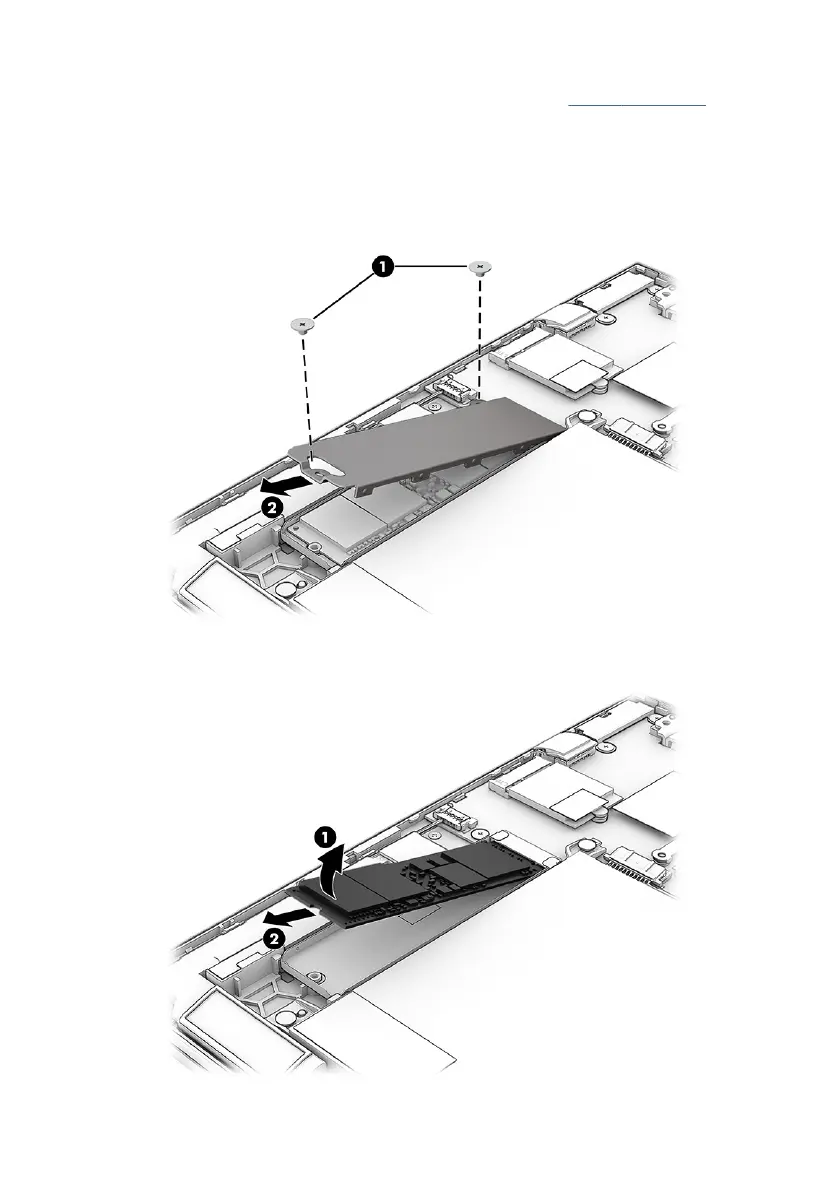

Remove the solid-state drive:
1. Remove the two Phillips M2.0 × 2.0 screws (1) that secure the drive cover, and then
remove the cover (2).
2. Lift the drive up (1), and then pull it away from the socket to remove it (2).
46 Chapter 5Removal and replacement procedures for authorized service provider parts
