HP ENVY x360

To Next Page

To Previous Page

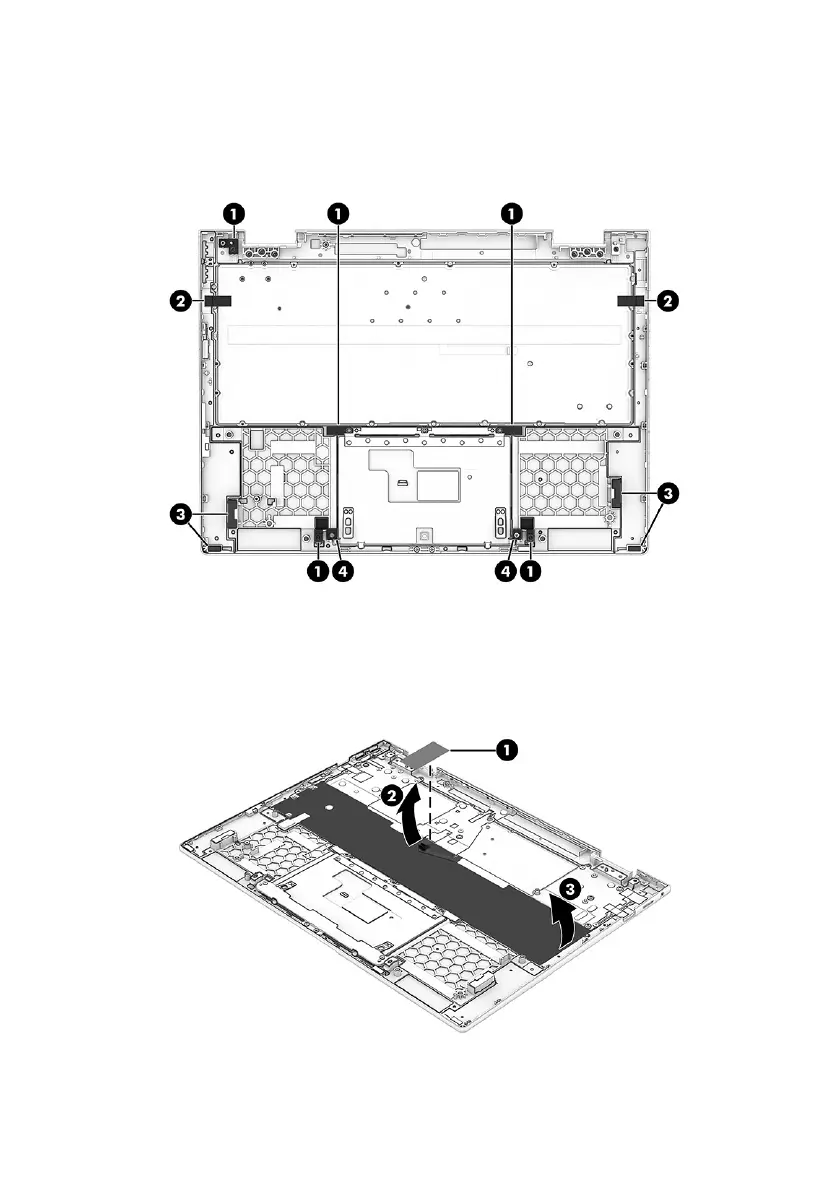

(2) Gaskets

(3) Magnets

(4) Rubber pieces

3. Remove the tape (1) from the large Mylar piece, release the backlight cable (2), and

then peel the large Mylar piece from the computer (3).

64 Chapter 5Removal and replacement procedures for authorized service provider parts
