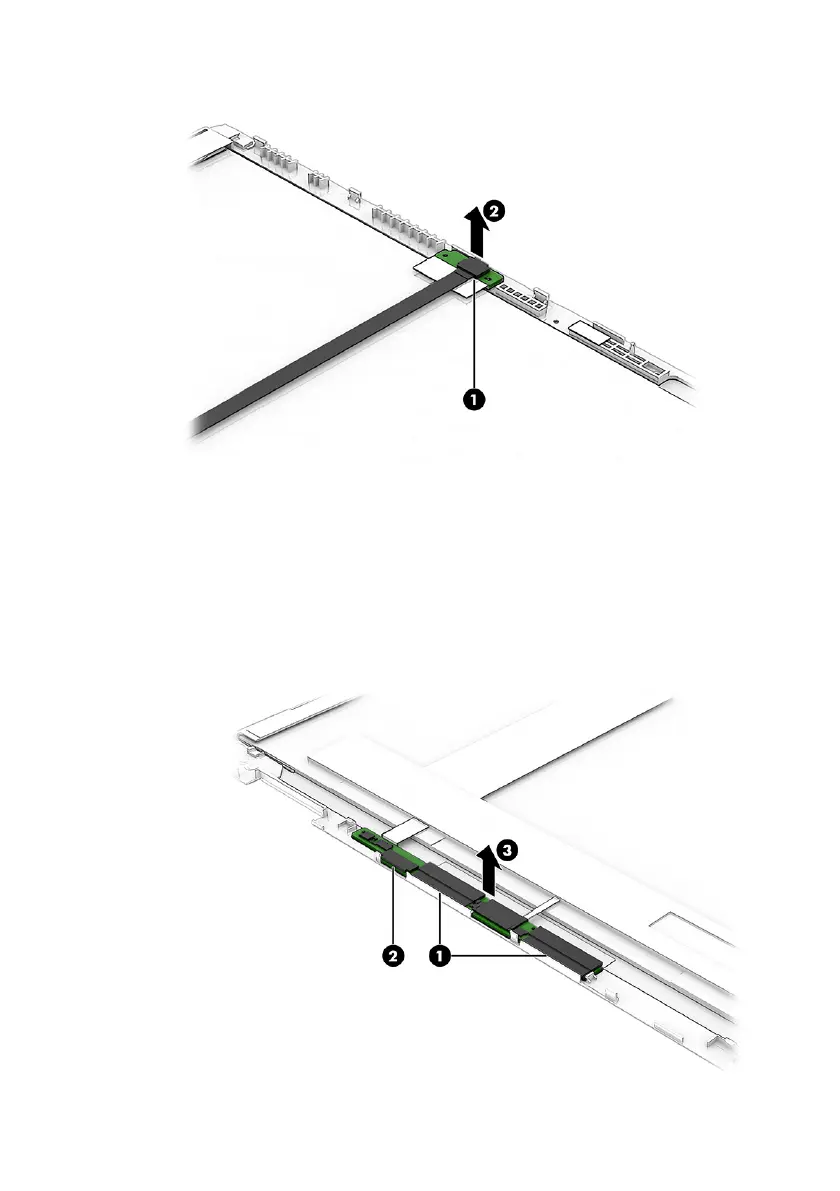

11. To remove the touch control board:

a. Disconnect the larger two cables (1) and smaller cable (2) from the touch

control board.

b. Peel the board o the bottom of the display back cover (3).

The touch control board is included in the touch panel spare part kits.

Display assembly 73
