Getting Started
The Display Layout
1-10 HP EPM-441A User’s Guide
Display Tutorial
If you wish to experiment with the display layout before you move on to
make measurements, the following procedure guides you through a few of
the display setups you can choose.

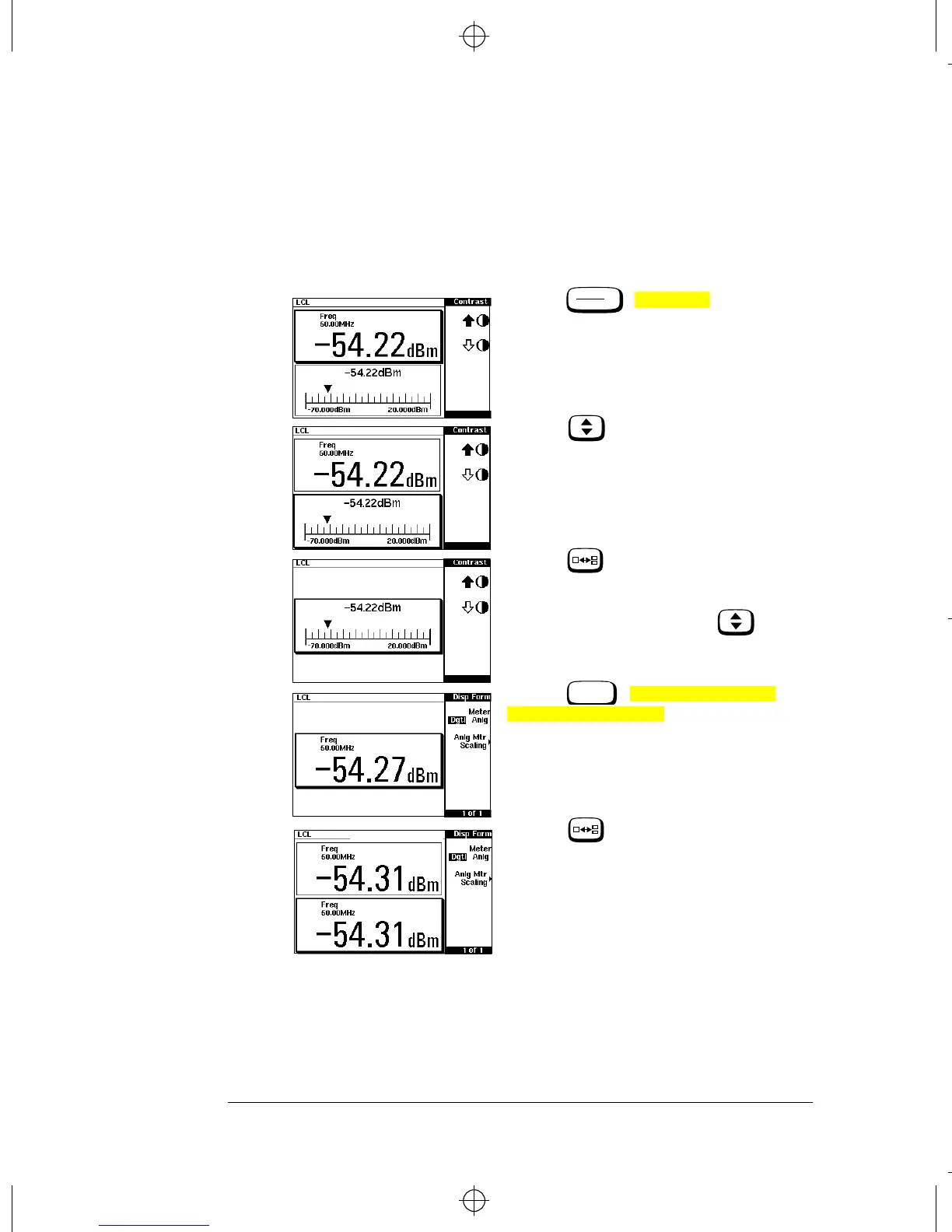

1.Press , .
Notice that the upper window (which
has a digital display) is the one which
is highlighted by the dark box.
2.Press . The display remains the
same apart from the fact that it is now
the lower window (which is an analog
display) that is highlighted by the dark
box.
3.Press . The display now only
shows the one window. This is the
analog window which, in the previous
step was selected with the key.
4.Press , ,
(Dgtl should be
highlighted). The display shows a
digital window.
5.Press . The display now shows
two digital windows.
Preset
Local
Confirm
Meas
Setup
Display Format
Meter Dgtl Anlg
To Next Page
