HP EVA P6000 Reference Guide

Installing the disk enclosure

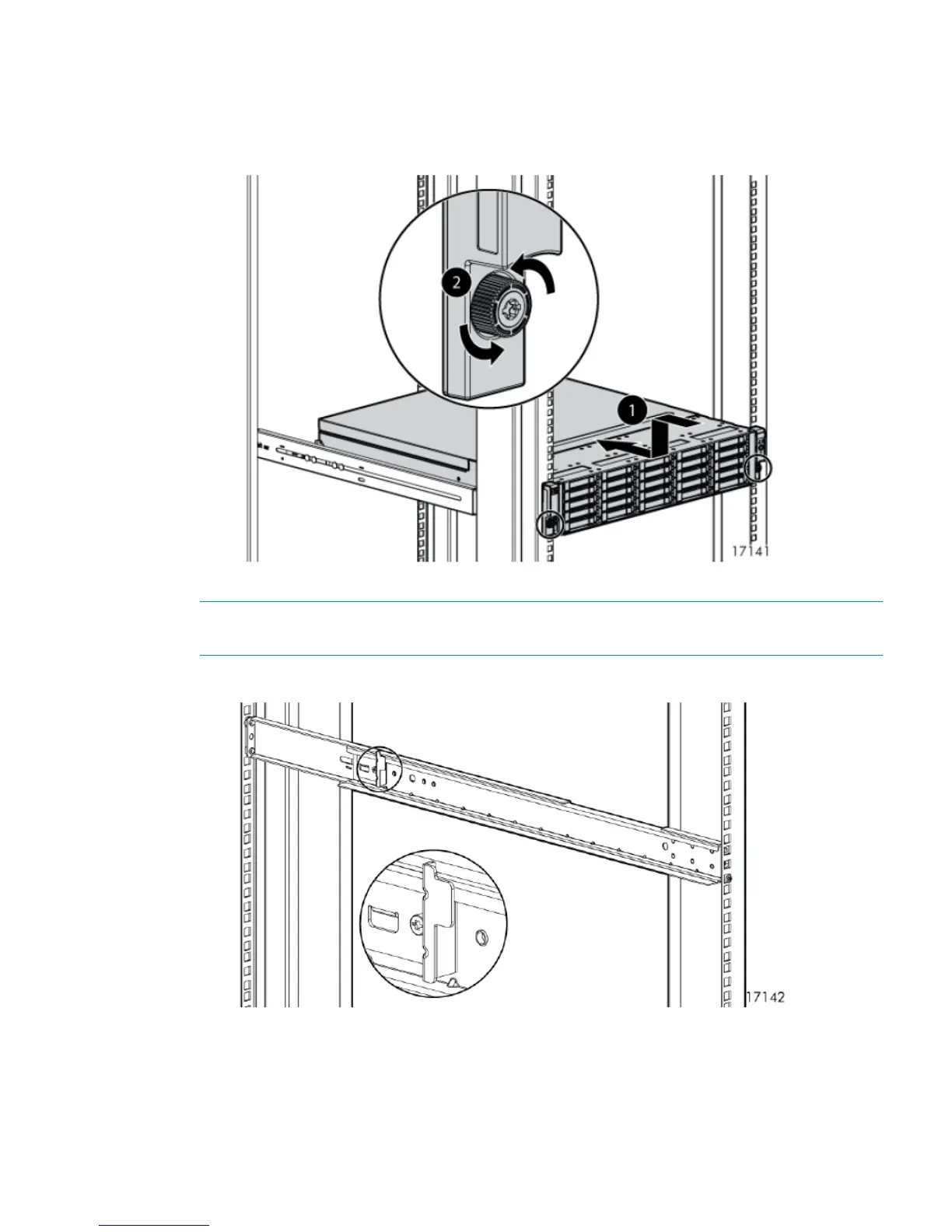

1. Slide the device into position on the rails (1, Figure 5) and then tighten the thumbscrews on
the front of the device to secure the device to the rack (2, Figure 5).
Figure 5 Position disk enclosure
NOTE: The rear ends of the rails have a CTO bracket that must engage the device chassis
to secure the rear of the chassis to the rails.
2. When cabling the device, use holes provided in the rear rack rails, install tie wraps, and route
external cable as required.
Installing the disk enclosure 9

HP EVA P6000 Specifications

General

Model	HP EVA P6000
Number of Storage Controllers	2
Management Software	HP Command View EVA
Drive Types	SAS, SSD
RAID Levels	RAID 0, 1, 5, 6
Connectivity	8 Gb Fibre Channel, 10 Gb iSCSI, 1 Gb iSCSI
Form Factor	Rack-mounted
Storage Controller Type	Dual controllers
