Connecting a P6300 EVA multi-product rack to a 0C4D expansion rack
See Figure 10 (page 13) for a fully cabled P6300 EVA 2C6D main rack configuration. For the
P6300 EVA expansion, divide the disk enclosures in the main rack into two groups, as evenly as
possible. With six disk enclosures, the first three disk enclosures below the controller enclosure are
in the top group; the last three disk enclosures are in the bottom group.
1. In the expansion rack, connect the four disk enclosures as shown in Figure 16 (page 23).

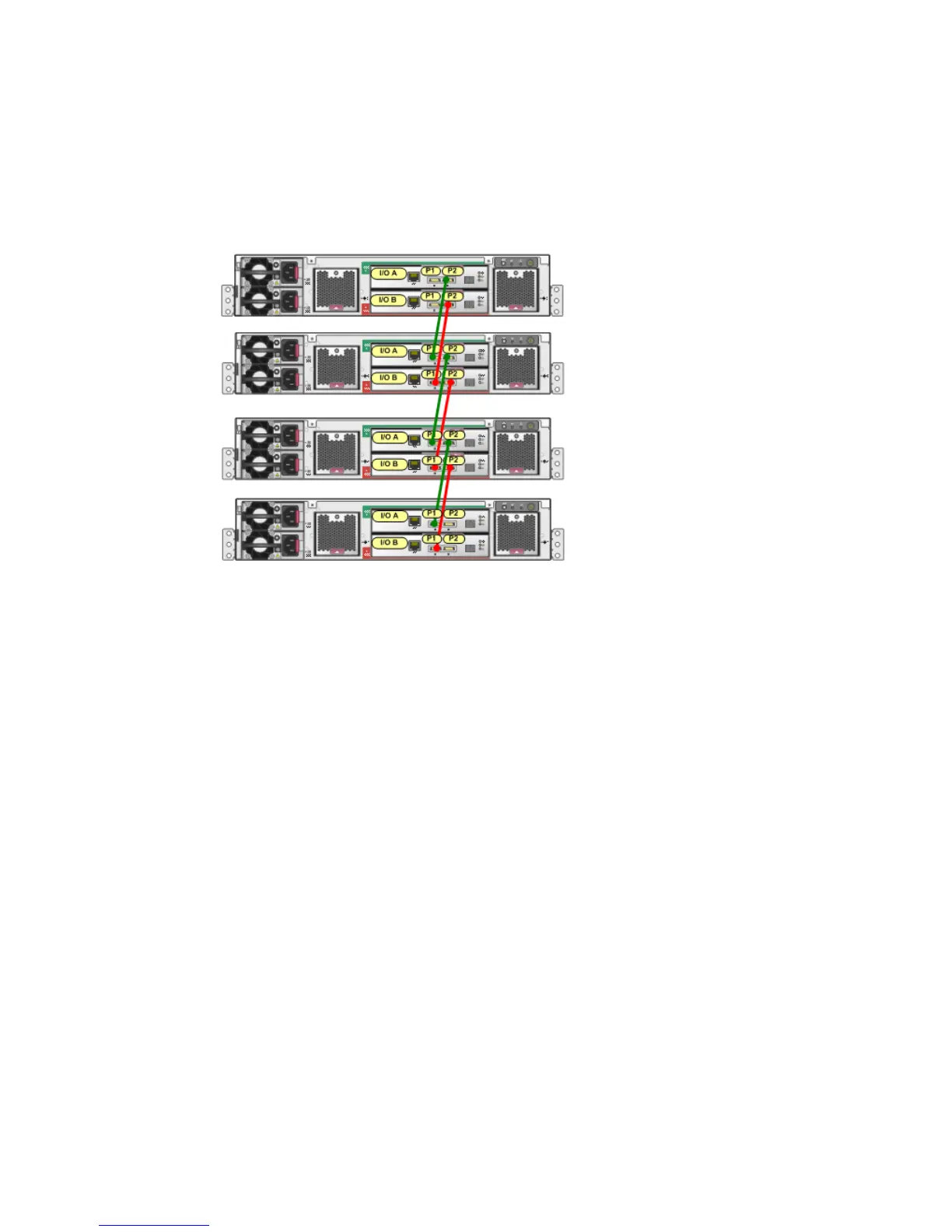

Figure 16 Connecting expansion rack disk enclosures for a P6300 EVA expansion
Offline expansion 23
