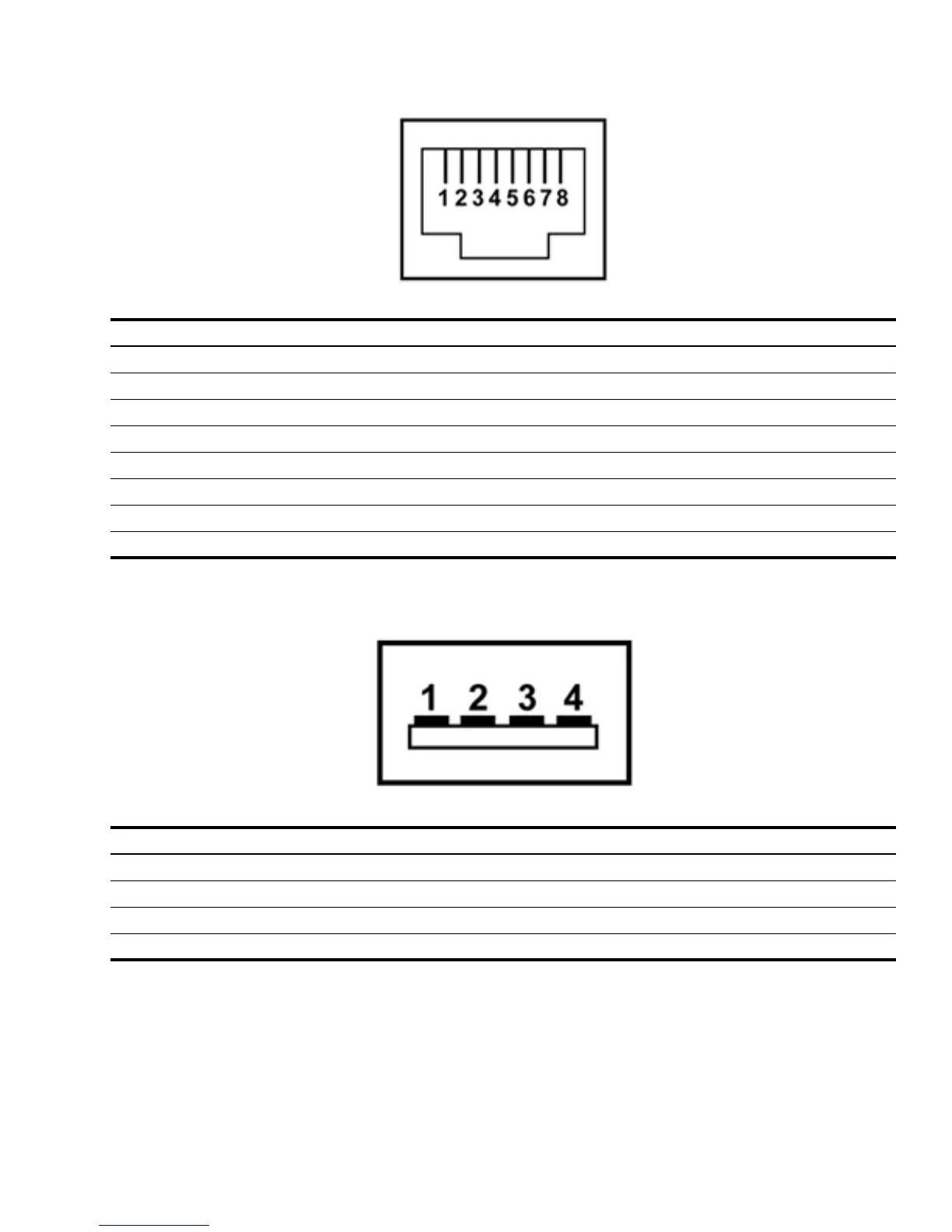

Connector pin assignments 9–4
RJ-45 (network)
Universal Serial Bus
Pin Signal
1Transmit +
2Transmit -
3Receive +
4 Unused
5 Unused
6Receive -
7 Unused
8 Unused
Pin Signal
1+5 VDC
2Data
3 Data +
4Ground
