Bluetooth module cable
Before removing the Bluetooth module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Bluetooth module (see “Bluetooth module” on page 4-23)
d. Keyboard (see “Keyboard” on page 4-24)
Remove the Bluetooth module cable:

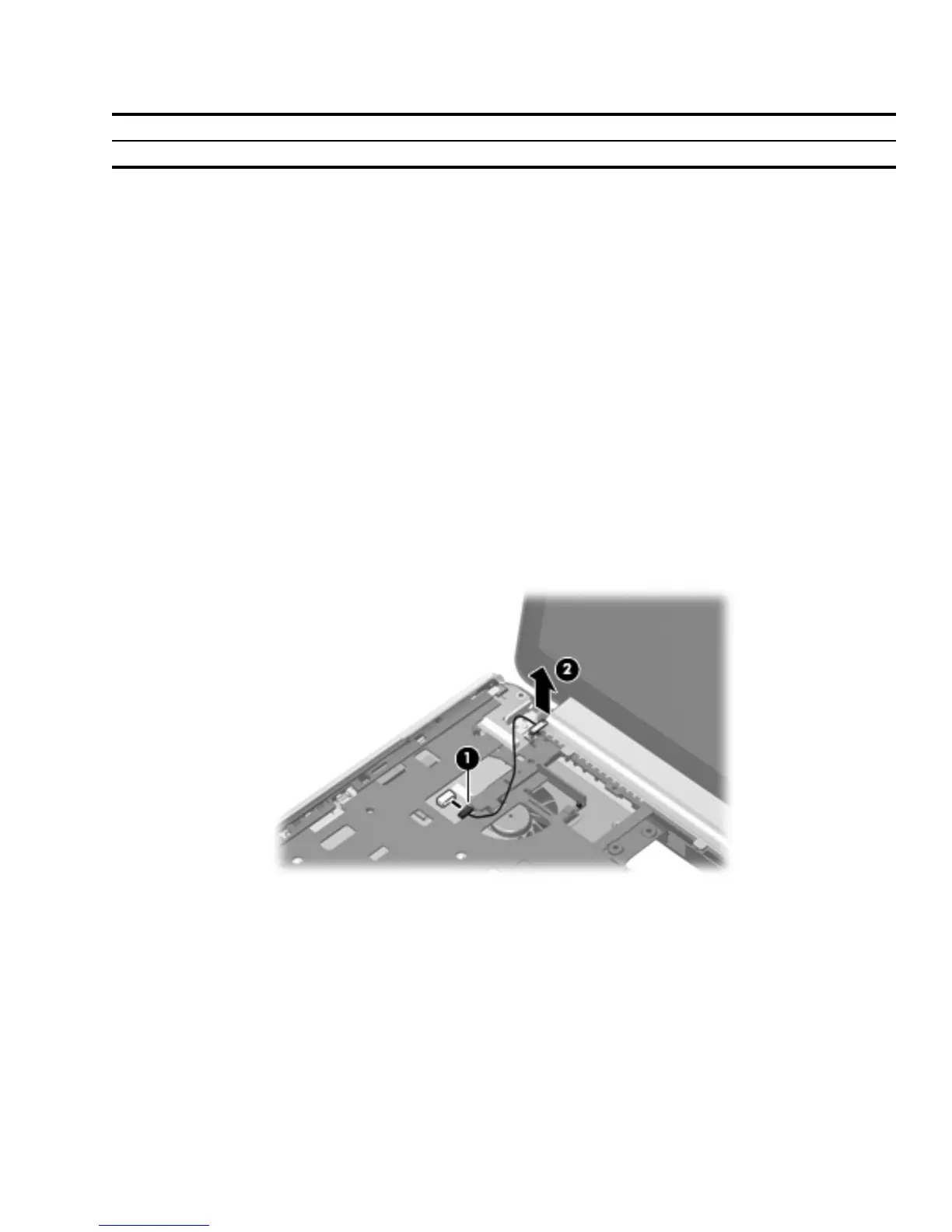

1. Disconnect the Bluetooth module cable 1 from the system board.
2. Remove the Bluetooth module cable 2.
Reverse this procedure to install the Bluetooth module cable.
Description Spare part number
Bluetooth module cable 496461-001
To Next Page
