Recycling 11 – 6

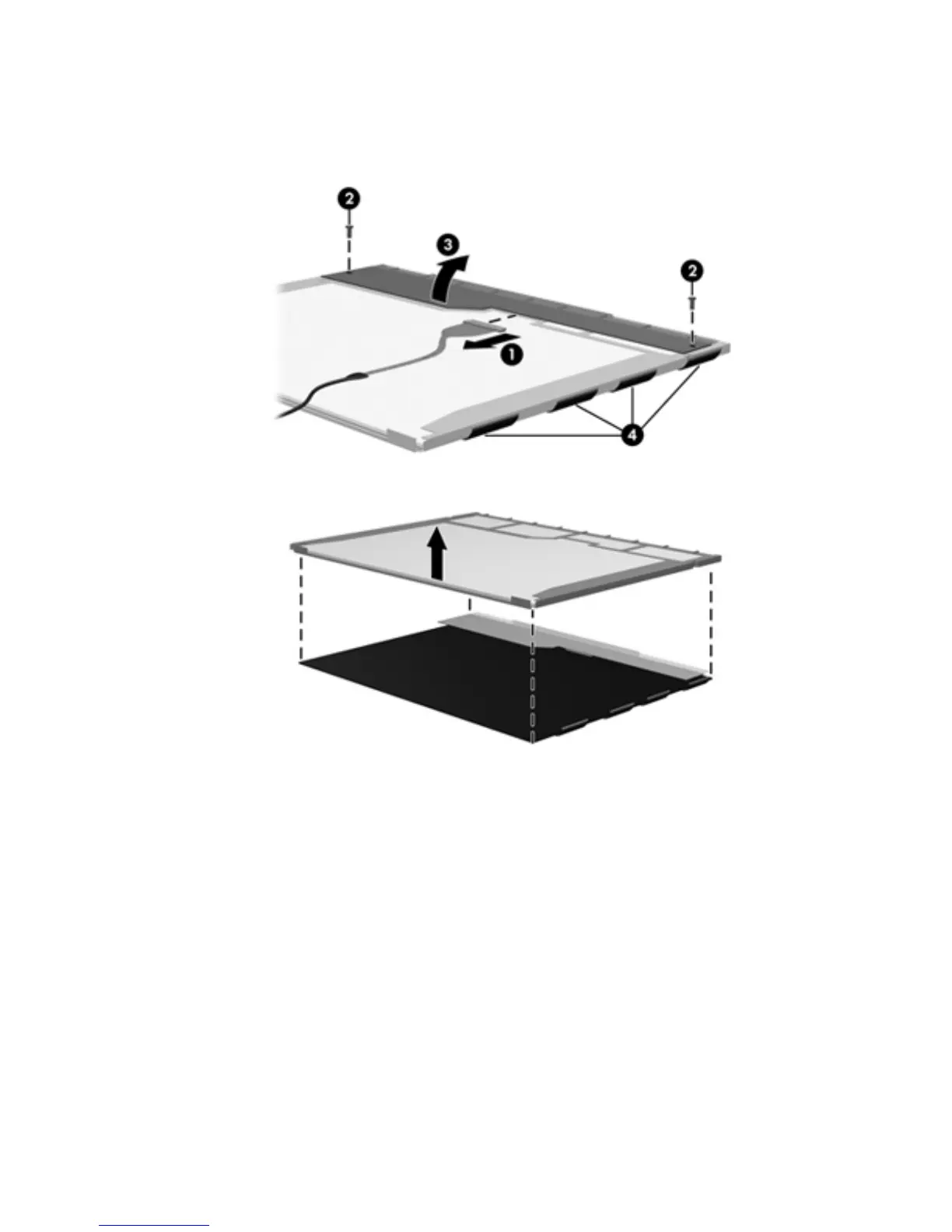

19. Disconnect the display cable 1 from the LCD panel.
20. Remove the screws 2 that secure the LCD panel to the display rear panel.
21. Release the LCD panel 3 from the display rear panel.
22. Release the tape 4 that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
