Removal and replacement procedures 4–19
2. Turn the computer display-side up, with the front toward you.
3. Open the computer as far as possible.

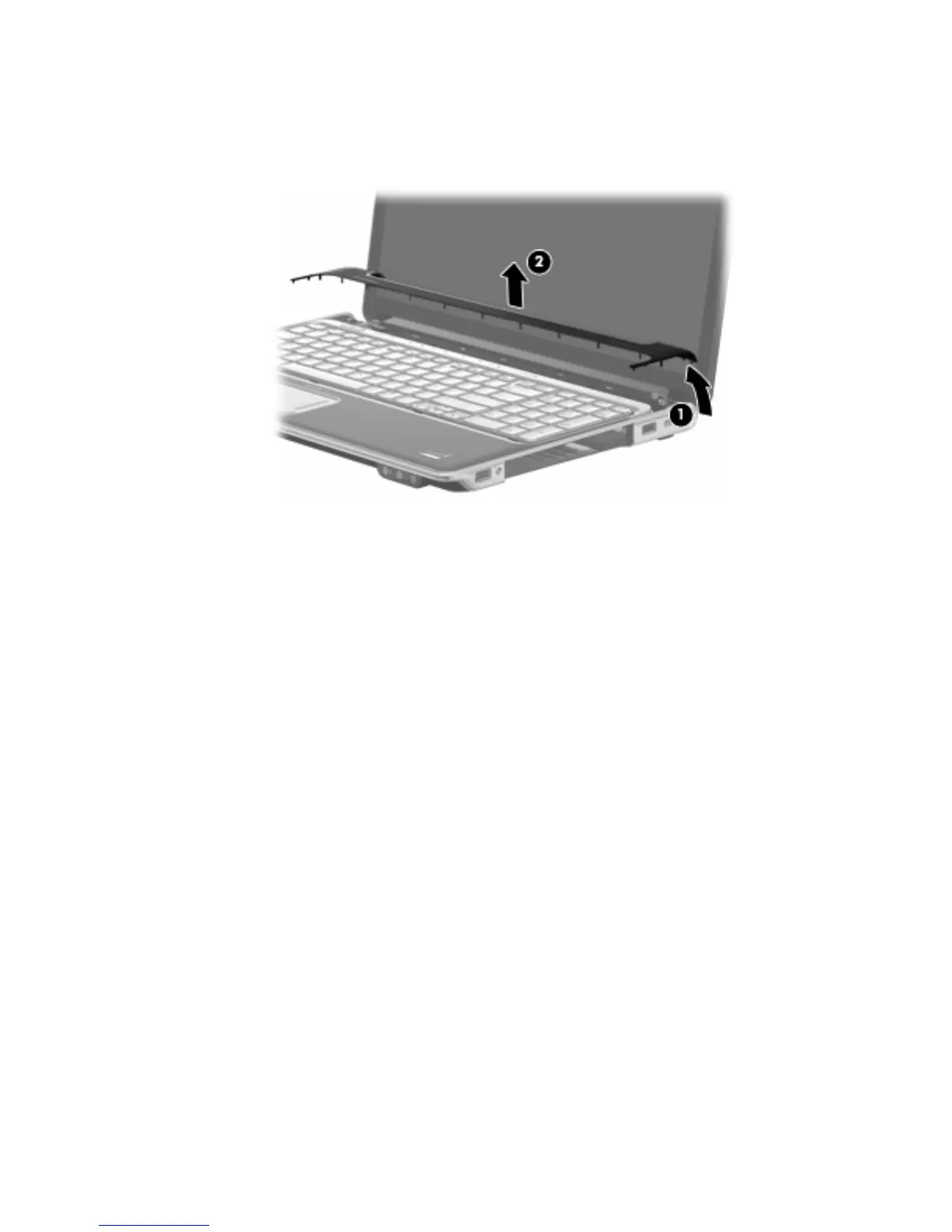

4. Lift the right side of the switch cover 1 until it detaches from the computer.
5. Remove the switch cover 2 by lifting it straight up.
Reverse this procedure to install the switch cover.
