Removal and replacement procedures 4–21
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.

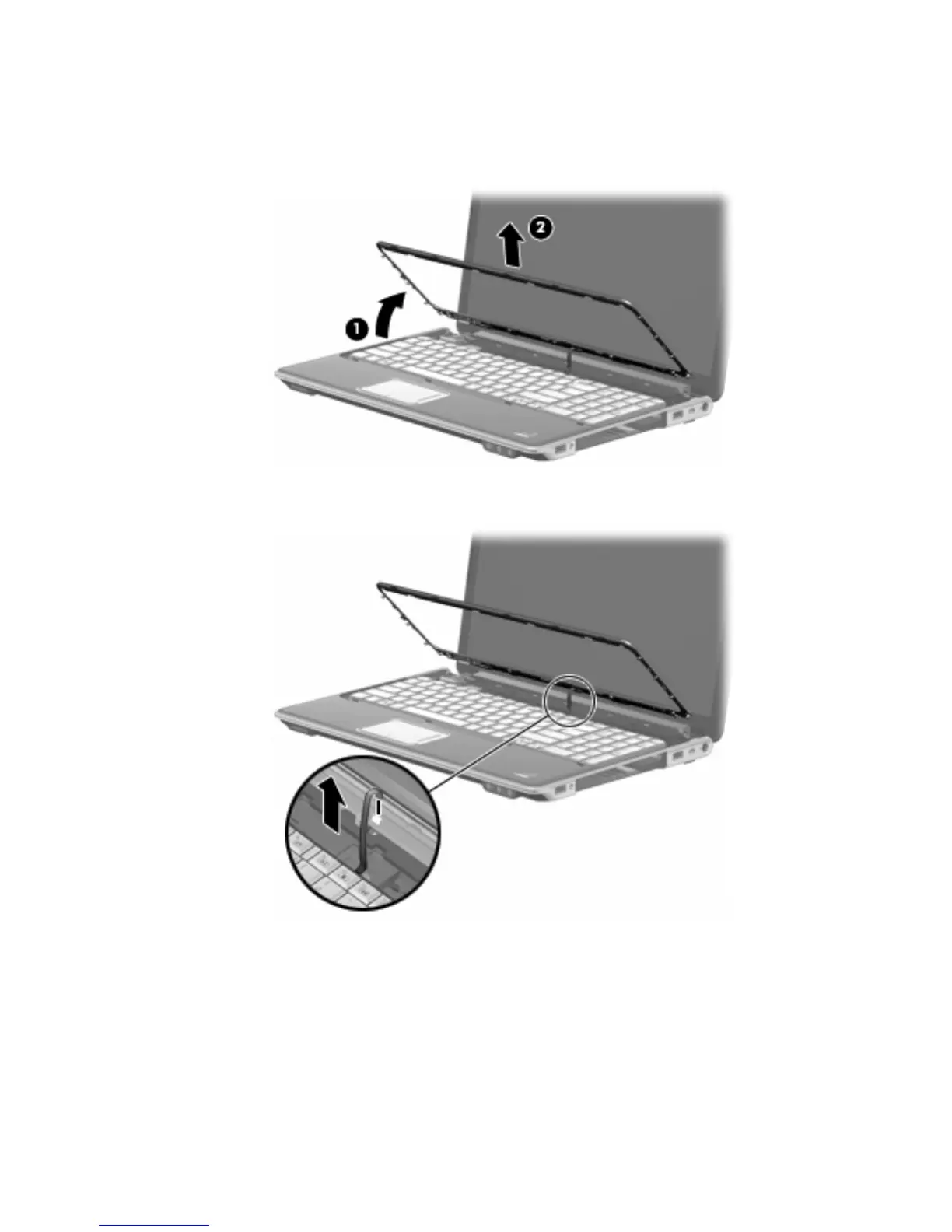

5. Release the keyboard cover by lifting the front edge 1 until it rests at an angle.
6. Lift the keyboard cover 2 as far as the power button board cable allows.
7. Disconnect the LED board cable from the LED board.
8. Remove the keyboard cover.
Reverse this procedure to install the keyboard cover.
