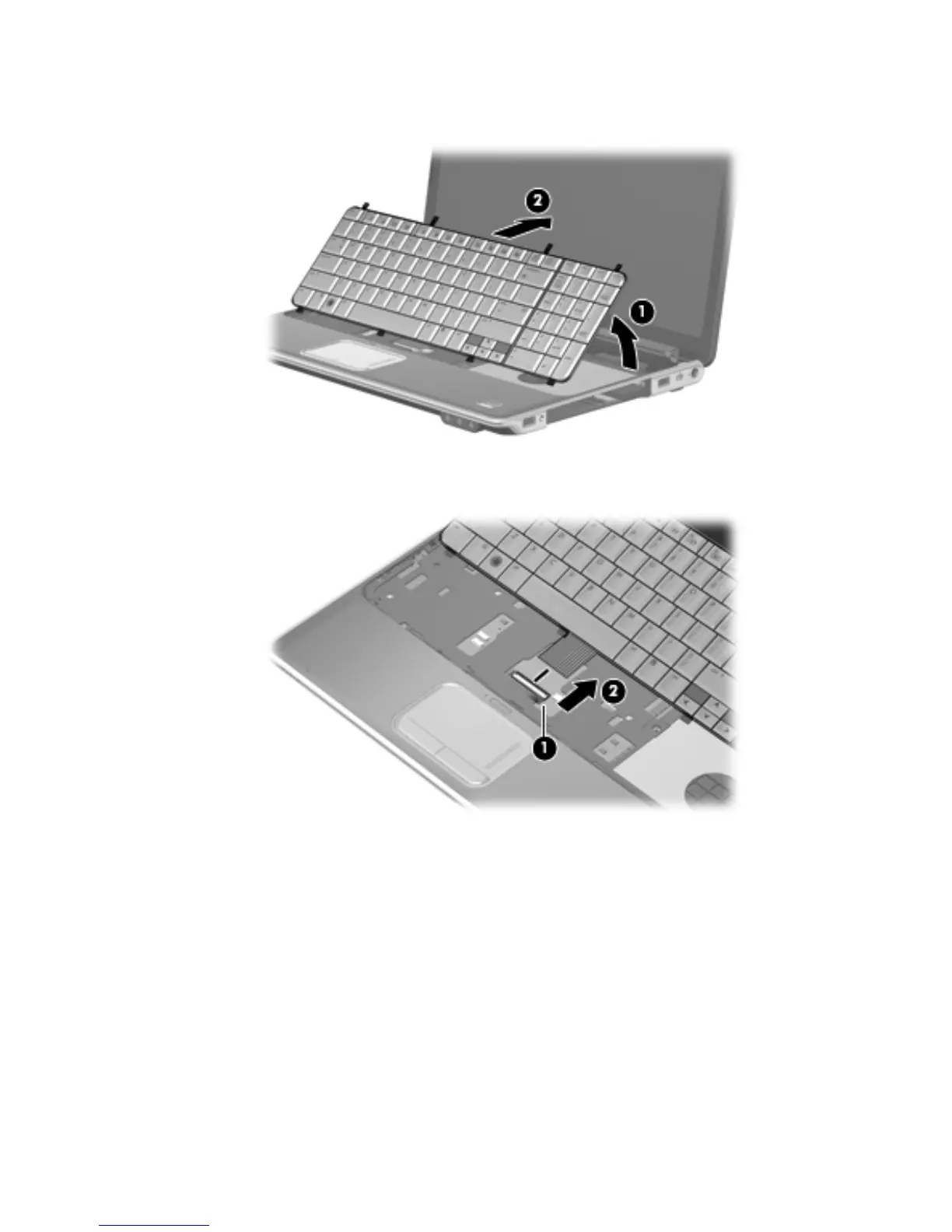

6. Lift the rear edge of the keyboard 1 until it rests at an angle.
7. Release the keyboard 2 by sliding it back to disengage the tabs on the front edge of the keyboard from the
top cover and rest it on the display.
8. Release the zero insertion force (ZIF) connector 1 to which the keyboard cable is attached and disconnect the
keyboard cable 2 from the system board.
9. Remove the keyboard.
Reverse this procedure to install the keyboard.
