Removal and replacement procedures 4–51

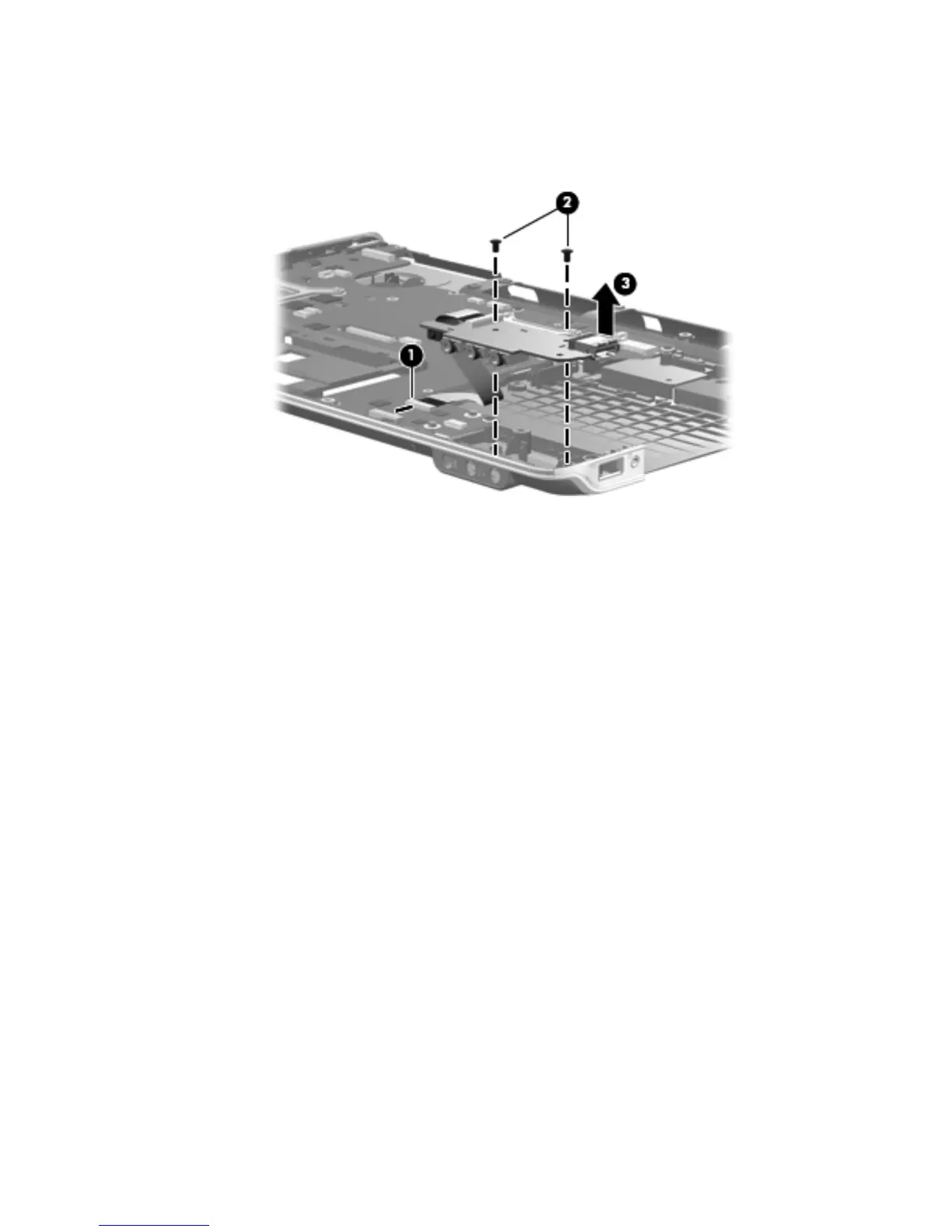

Remove the audio/infrared board:
1. Disconnect the audio/infrared board cable 1 from the system board.
2. Remove the two Phillips PM2.0×4.0 screws 2 that secure the audio/infrared board to the base enclosure.
3. Remove the audio/infrared board 3 by lifting it straight up.
Reverse this procedure to install the audio/infrared board.
