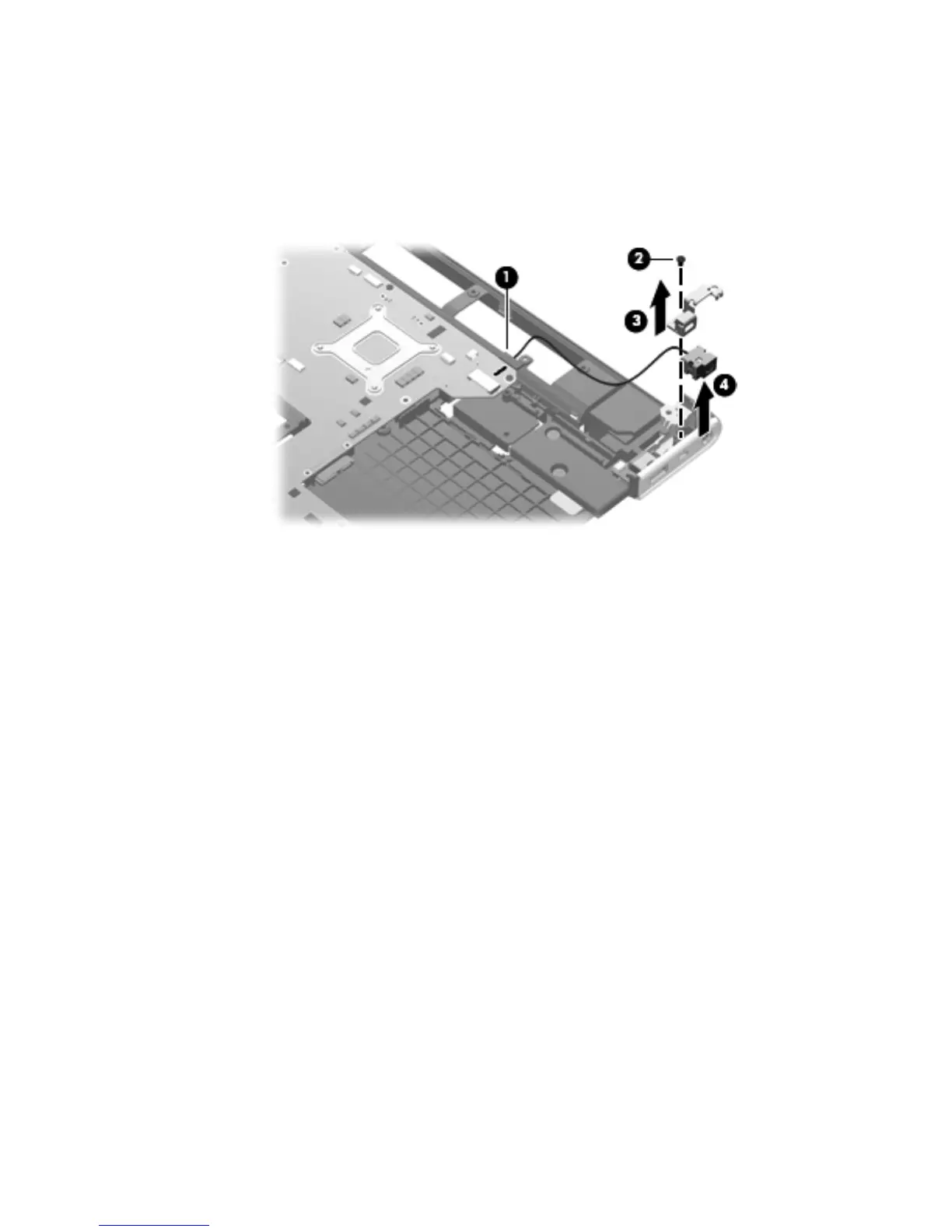

Remove the power connector cable:
1. Disconnect the power connector cable 1 from the system board.
2. Remove the Phillips PM2.5×7.0 screw 2 that secures the power connector and bracket to the base enclosure.
3. Remove the power connector bracket 3.
4. Remove the power connector cable from the clips and routing channel built into the subwoofer.
5. Remove the power connector and cable 4.
Reverse this procedure to install the power connector cable.
