Five rack configuration
This following figure and table shows the service clearances and floor load rating for a five-rack
configuration.

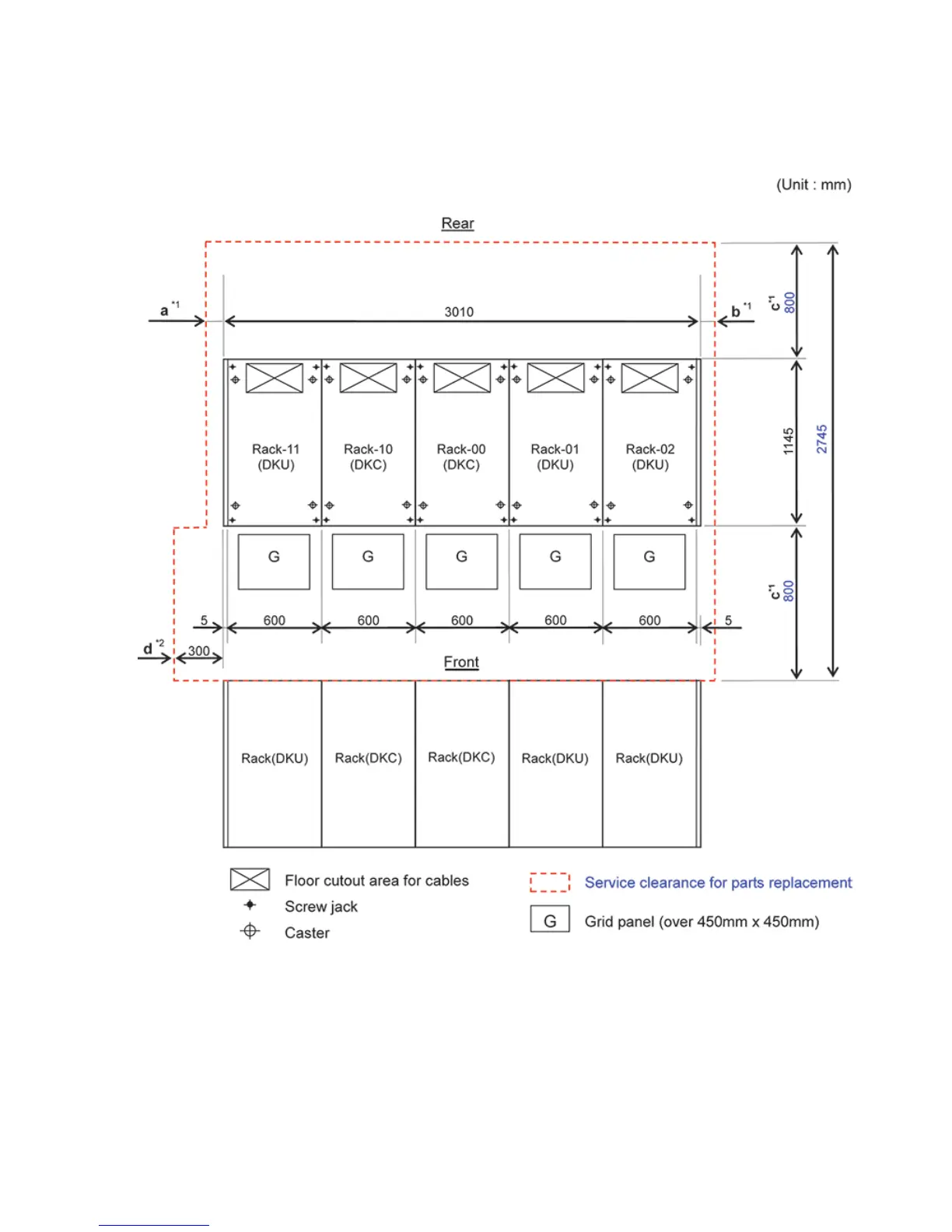

Figure 14 Service clearances for a five rack system
*1 Clearance (a+b) is based on the floor load rating and the clearance (c). Floor load rating and
required clearances are shown in Table 23 (page 43).
*2 Clearance (d) is required over 300mm to open the front door. In the case that the clearance
(d) is less tan the clearance (a), give priority to clearance (a).
