◦ Four internal 3GB/s SATA ports (for the four 2.5-inch disk drives in the MC990 X server chassis)
◦ Two internal 6GB/s SATA ports (for the two optional mini 1.8-inch SSDs)
◦ One internal USB 2.0 port (for the internal DVD)
NOTE:
Each Integrity MC990 X system (or SSI within a system) requires one BaseIO board. BaseIO
board front panel components shows the front components of the BaseIO board. The SSD
drives (bottom) are enclosed with a metal cover.
1. Ethernet port
2. USB ports (4)
3. Solid State Drives (2)

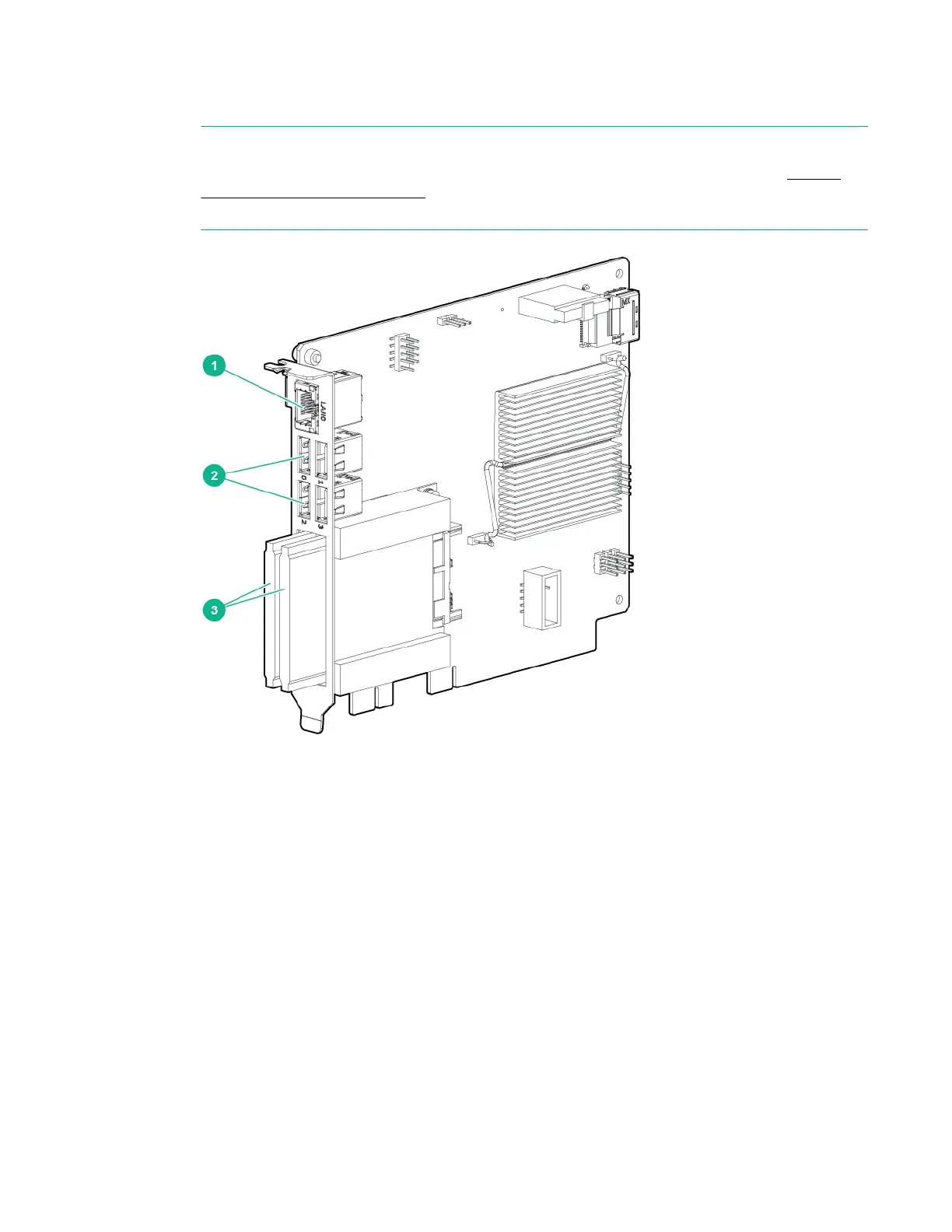

Figure 4: BaseIO board front panel components
• RMC---This 1U-high rack management controller provides external LAN and USB connections into the
Integrity MC990 X system and acts as a top layer of system control. An internal 24-port Ethernet
switch allows system control for up to multiple MC990 X enclosures in an expanded Integrity MC990 X
system.
