HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide 2–3
Installing or Replacing Parts and Accessories

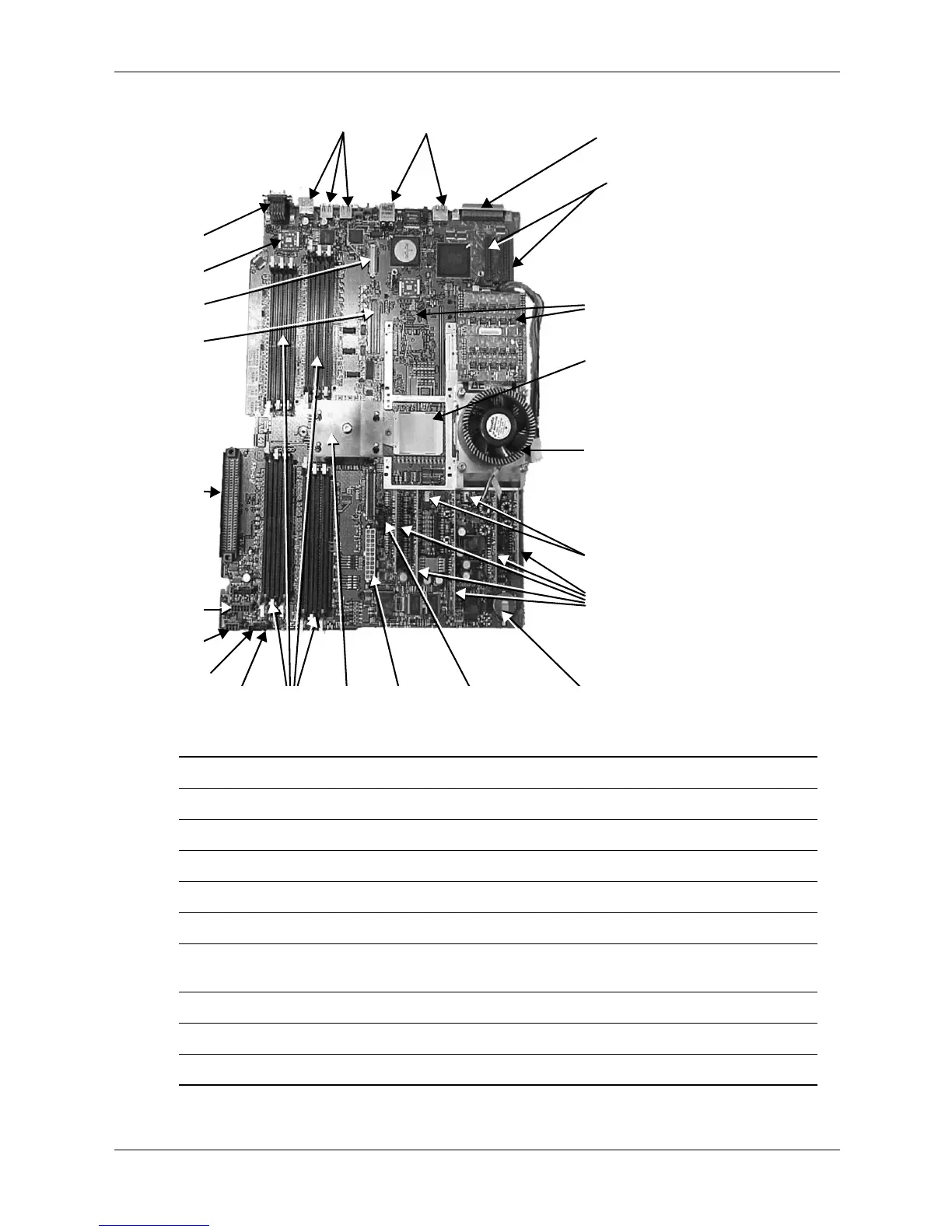

System Board Connectors and Slots (front of system at bottom of photo)
1 External SCSI connector 13 Status panel connector
2 SCSI connectors A & B 14 Control and standy power connector
3 Processor power Pod(s) 15 SCSI backplane power connector
4 CPU1 (empty socket) 16 PCI/Memory fan cable connector
5 CPU0 (processor under Turbo Fan) 17 PCI/AGP backplane connector
6 Turbo fan power connectors 18 Optical drive connector
7 Five VRM cards 19 Management Processor card
connector
8 Battery 20 HP ZX1 I/O adapter
9 System fan connector 21 Serial ports (2)
10 Main power connector 22 USB connectors (4)
22
23
14
2
1
16
17
18
19
15
2
0
13 10 912 11
3
2
7
1
6
5
4
8
