HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide 4–15
Troubleshooting
LAN LEDs
7KHIURQWSDQHO/$1/('LQGLFDWHVWKHV\VWHPLVFRPPXQLFDWLQJRYHUWKH*LJDELWRU6\VWHP
0DQDJHPHQW/$1
■
EOLQNLQJJUHHQWKHV\VWHPLVFRPPXQLFDWLQJRYHUWKH/$1
■
VROLGJUHHQ
/$1OLQNLVHVWDEOLVKHGQRFXUUHQW/$1DFWLYLW\
■
QRWJUHHQWKHV\VWHPLVRII

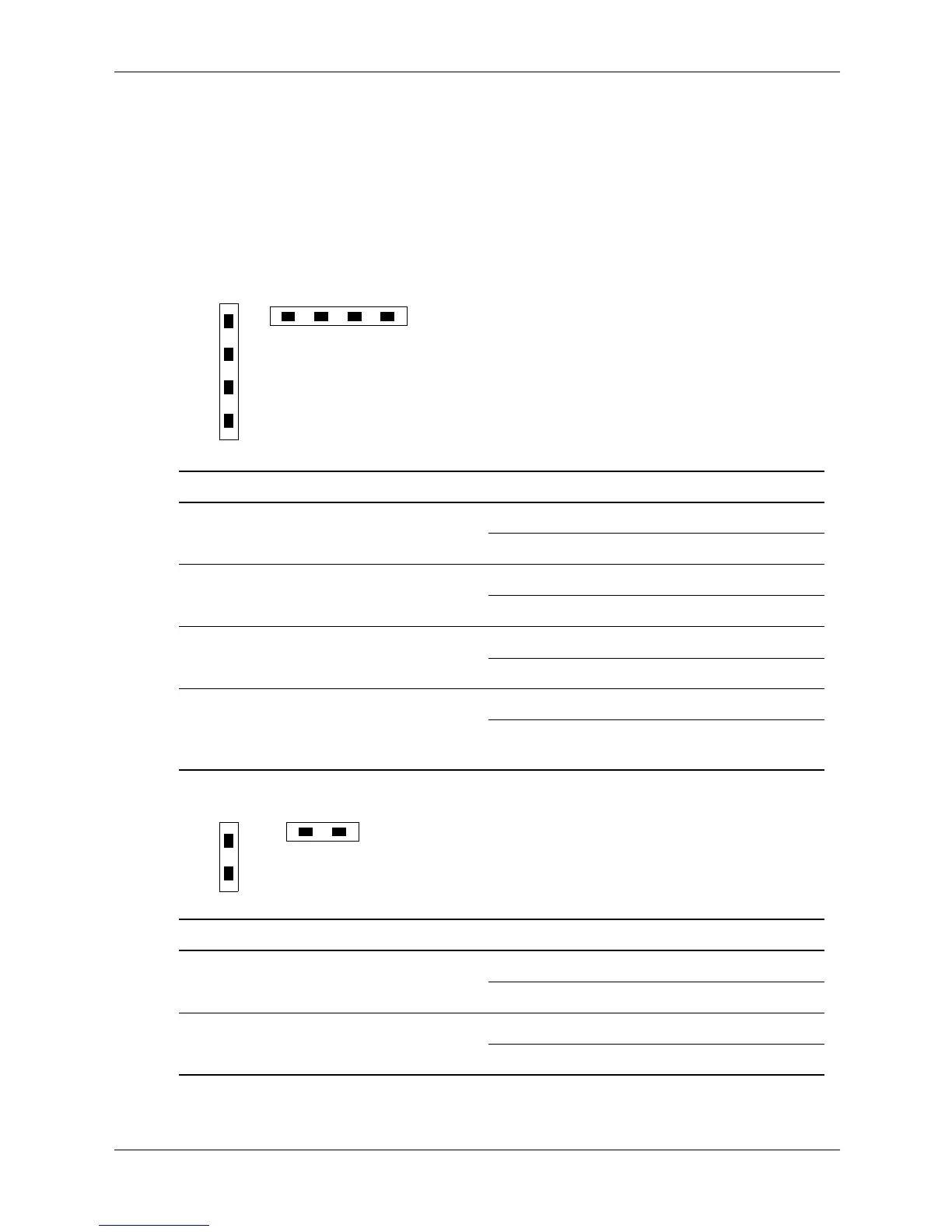

)RXU*LJDELW/$1/('VDUHRQWKHUHDUSDQHO
7ZR6\VWHP0DQDJHPHQW/$1/('VDUHRQWKHUHDUSDQHO

LAN LED Location Color State
1. Gbit Tower: Right Off No 1000 Mbps link
Rack-mounted: Top Green Port linked at 1000 Mbps
2. 100mb Tower: 2nd from right Off No 100 Mbps link
Rack-mounted: 2nd from top Green Port linked at 100 Mbps
3. Link Tower: 2nd from left Off No 10 Mbps link
Rack-mounted: 2nd from bottom Green Port linked at 10 Mbps
4. Activity Tower: Left Off No LAN activity
Rack-mounted: Bottom Green Flashing or solid green LED indicates
activity on LAN port
LAN LED Location Color State
1. Speed Tower: Right On Port linked at 100 Mbps
Rack-mounted: Top Off Port linked at 10 Mbps
2. Activity Tower: Left On Port linked
Rack-mounted: Bottom Off No link established
4321
1
2
3
4
21
1
2
