HP Integrity rx2600 - Removing the Led Status Panel

HP Integrity rx2600 server and HP workstation zx6000 Operation and Maintenance Guide 2–37
Installing or Replacing Parts and Accessories
Led Status Panel
7KH/('VWDWXVSDQHOFDUGFRQWDLQVWKHV\VWHP/('VDQGWKHHEX]]HU
Ä
CAUTION: Some system settings are saved to the LED status panel. If you are replacing both the LED
status panel and the system board, they must be replaced one at a time to avoid loss of system settings.
First replace one component, then turn on the system and boot to the EFI prompt. After confirming that the
first component has been replaced successfully, shut down the system and replace the second
component.
Removing the LED Status Panel
 7XUQRIIWKHV\VWHPGLVFRQQHFWDOOSRZHUFDEOHVDQGUHPRYHWKHV\VWHPFRYHUV
 'LVFRQQHFWWKH/('VWDWXVSDQHO©VFRQWUROOHUFDEOH

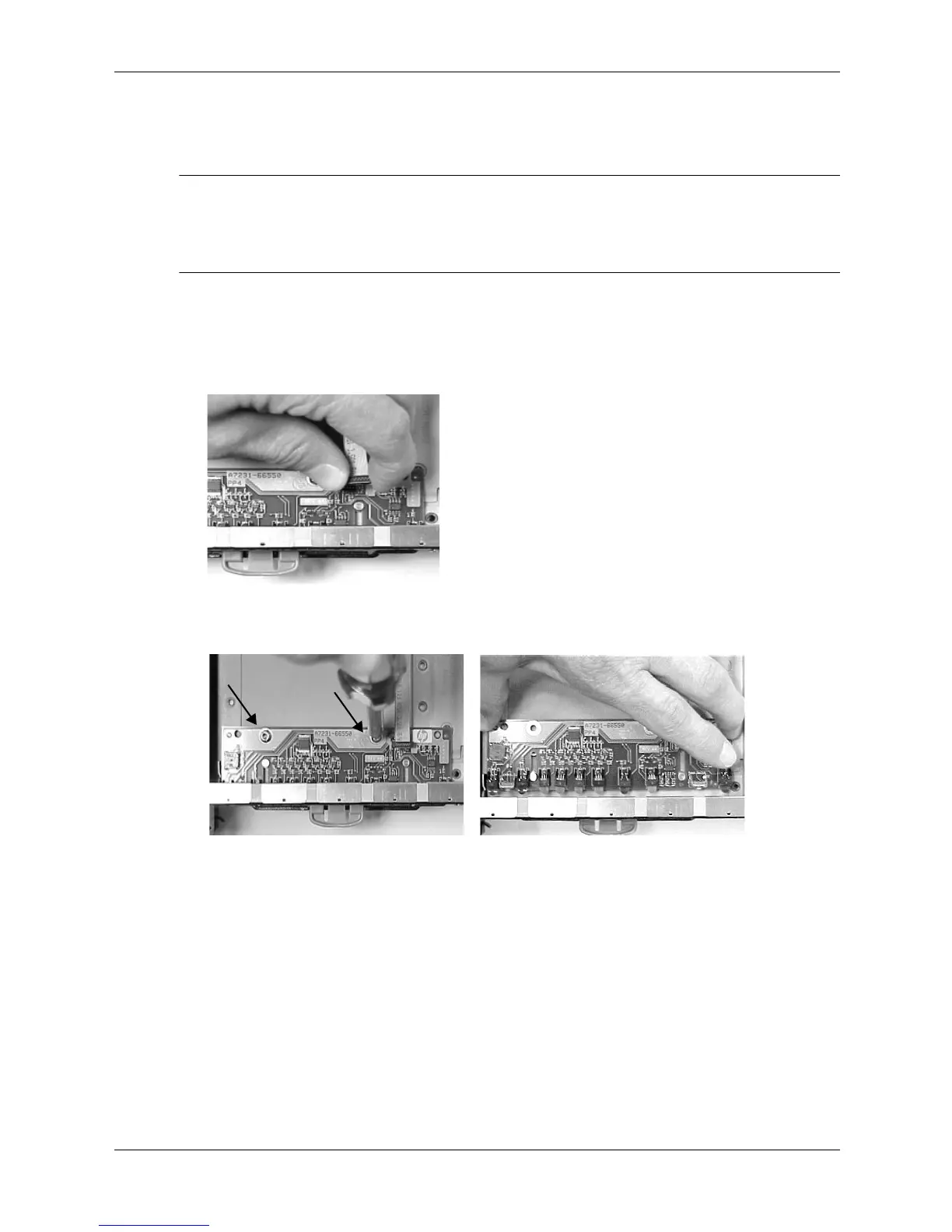

Disconnect the LED Status Card Controller Cable
 8QVFUHZWKHWZR/('VWDWXVSDQHOPRXQWLQJVFUHZVDQGUHPRYHWKHSDQHO
Remove the LED Status Card
