System Board Diagnostic LEDs
7KHUHDUHWKUHHDGGLWLRQDO/('VWKDWFDQKHOSZKHQWURXEOHVKRRWLQJWKHV\VWHP7KHVH/('VDUH
ORFDWHGRQWKHV\VWHPERDUGFORVHWRWKHEDFNRIWKHV\VWHPDQGFDQEHYLHZHGWKURXJKWKHVPDOO
FRROLQJKROHVLQWKHV\VWHPFDVH

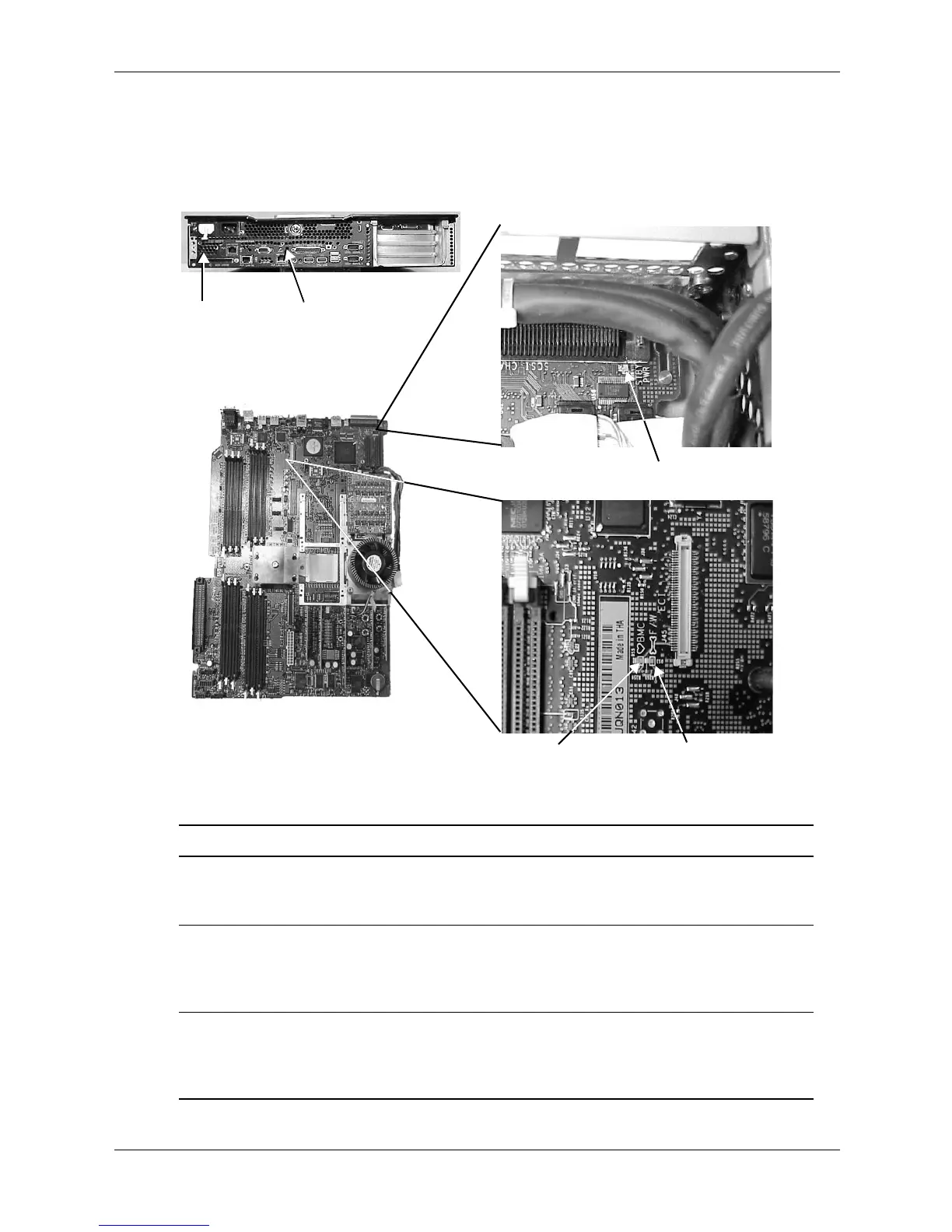

Location of the STBY LED, F/W LED and BMC LED
LED Description
1 STBY This standby LED comes on as soon as the system power cord is plugged in.
If this light is off when you plug it in, reseat the power supply, and if this
does not work, replace the power supply. See Chapter 2 for instructions.
2 BMC A few seconds after the system is plugged in this LED starts blinking, which
means that the Baseboard Management Controller is alive. If this LED is not
blinking and the STBY (standby) LED is on, you may have to replace the
system board.
3 F/W A few seconds after the power button is pressed in the system firmware
code fetch LED comes on indicating that the firmware has started the boot
process. If this LED does not come on, you may have to replace the system
board.
3
2
1
1
2, 3
