HP Kayak XU Technical Reference Manual

11
2 System Board
Architectural View
Architectural View

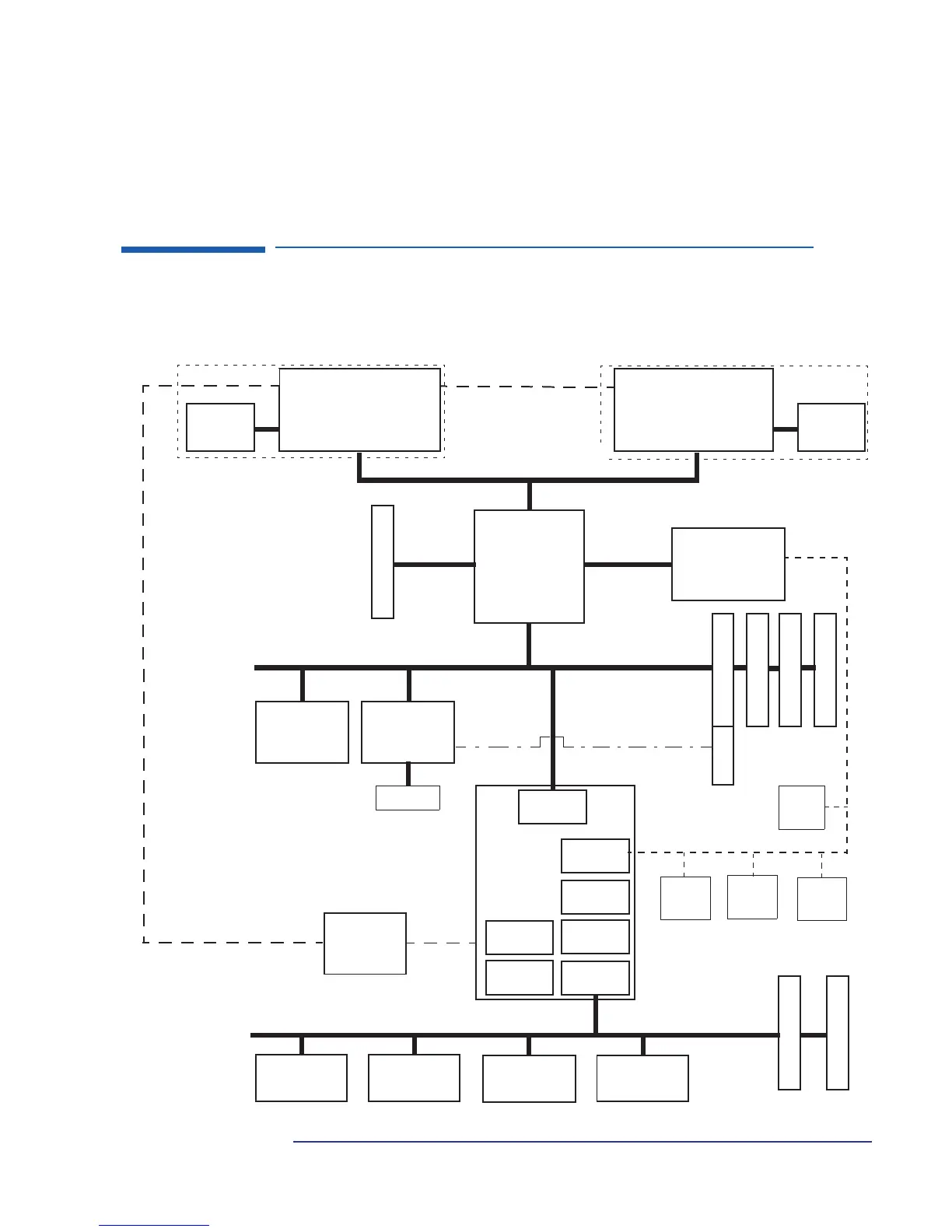

The following block diagram gives an architectural view of the HP Kayak
XU PC Workstation (for frequencies, see the table on page 16).
Intel Pentium II Processor
440 LX PAC
AGP Slot
Main Memory
4 DIMMS
L2 cache
memory
Processor-Local (PL) Bus
(GTL+, 64 bit, 66 MHz)
82371AB
PCI/ISA
Bridge (PIIX4)
PCI Bus
(32-bit, 33 MHz)
ISA Bus
(16-bit, 8.33 MHz)
AD-1816
Audio
Interrupt
Controller
PCI Bus
interface
Ultra DMA
Controller
ISA bus
interface
IDE
Controller
2 X USB
Controller
SMBus
Controller
AIC-7880
Wide (16-bit)
SCSI
Little Ben
NS-317
Super I/O
2 X 29F002T
Flash EEPROM
Intel Pentium II Processor
(optional second processor)
L2 cache
memory
82093AA
I/O APIC
AIC-7860
Narrow (8-bit)
SCSI
FastRAID
PCI Slots
10/100TX LAN
ISA Slots
LM78
LM75
Serial
EEPROM
Main
PLL
Memory Bus
72-bit ECC
SMBUS
Hard disks
32-bit, 66 MHz
2 X AGP Bus
Cartridge Cartridge
