6-12 Removing and Replacing Parts
Left Side Cover

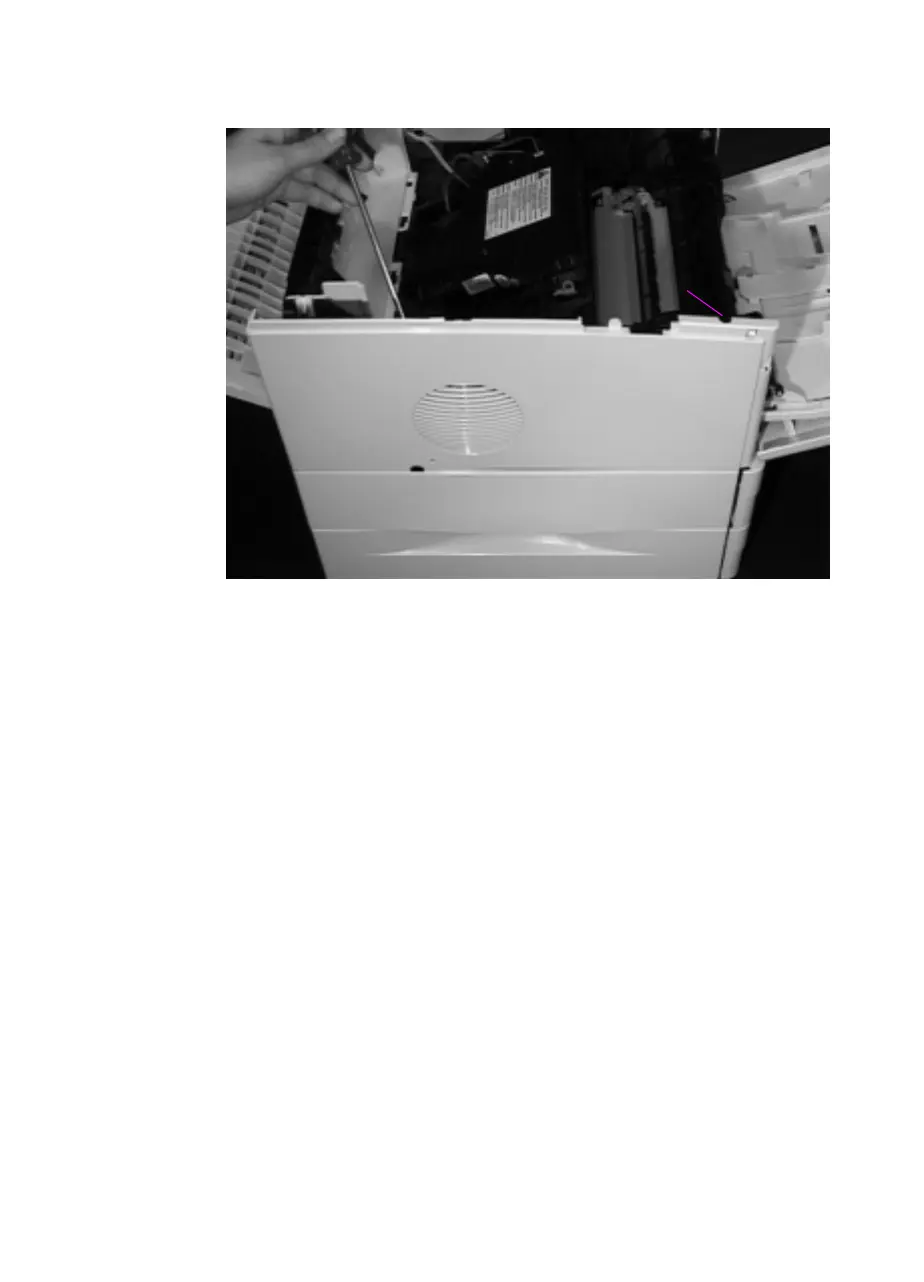

Figure 6-8 Removing the Left Side Cover
1 Open Tray 1.
2 Release the latch on the left side cover from the inside of the
printer. Release the catches on the front side of the cover.
3 Lift the cover upward to release the front top side of the cover,
then pull the cover away from the printer.
Latch (inside)
Catches
