Removing Assemblies 6-33
Right Side Toner Cartridge Guide
You can lift aside the Right Side Toner Cartridge Guide (instead of
removing it) to access the Registration Assembly. It is not necessary
to unplug the connectors.
Remove the Right Side Toner Cartridge Guide to access the Gear
Train. Follow the steps below:
1 Remove the Top Cover (page 6-7), Front Right Side Cover (page
6-13), and Tray 1 (page 6-15). The Right Side Toner Cartridge
Guide is on the right front side of the printer.

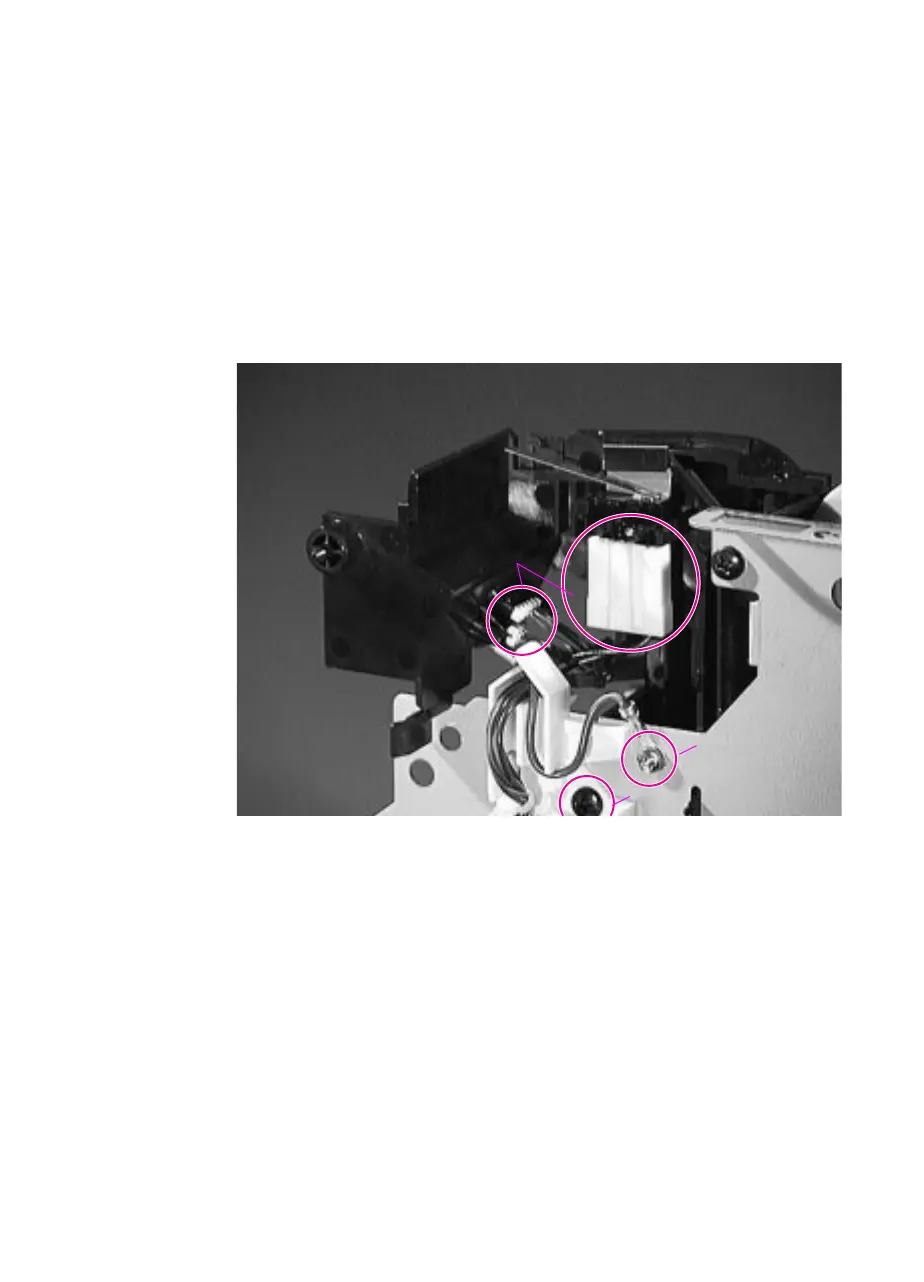

Figure 6-30 Removing the Right Side Toner Cartridge Guide
2 Remove the black self-tapping screw.
3 Unplug the 3 connectors if necessary.
4 Remove the small silver screw to disconnect the ground wire.
5 Lift the Right Side Toner Cartridge Guide off the printer.
Step 2
Step 3
Step 4
