6-6 Removing and Replacing Parts
Removing Covers
It is usually best to remove and replace the covers in the order shown.
Turn the printer off and unplug the power cord and any cables.
Hint Left and right are indicated as you face the front of the printer unless
otherwise noted.
Rear Right Side Cover

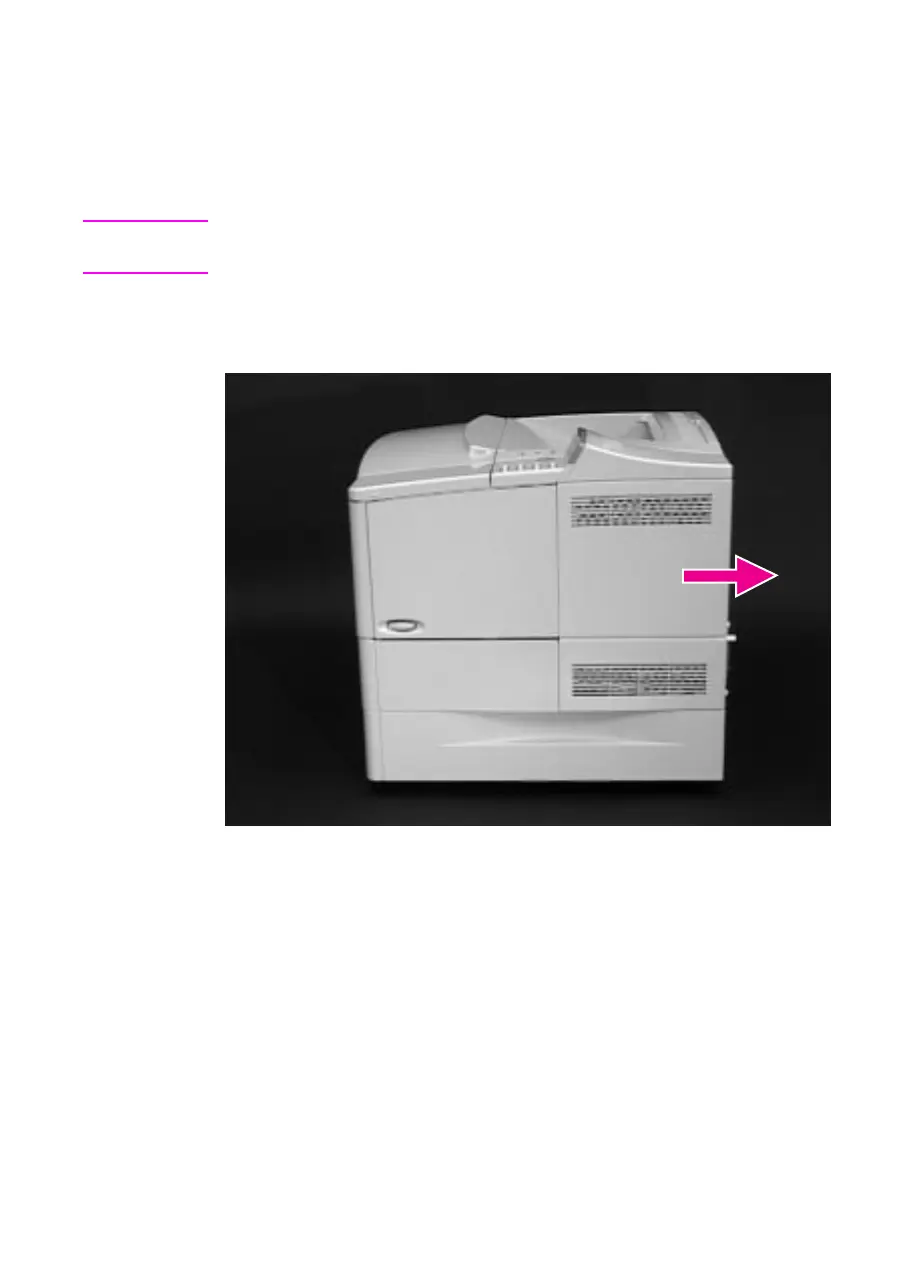

Figure 6-2 Removing the Rear Right Side Cover
The Formatter and Dual In-line Memory Modules (DIMMs) are
located underneath the Right Side Cover.
1 Grasp the cover by its rear lip and pull it firmly toward the rear of
the printer until it stops.
2 Remove the cover from the printer.
