HP LaserJet 4000 Series - Page 183

Removing Assemblies 6-37

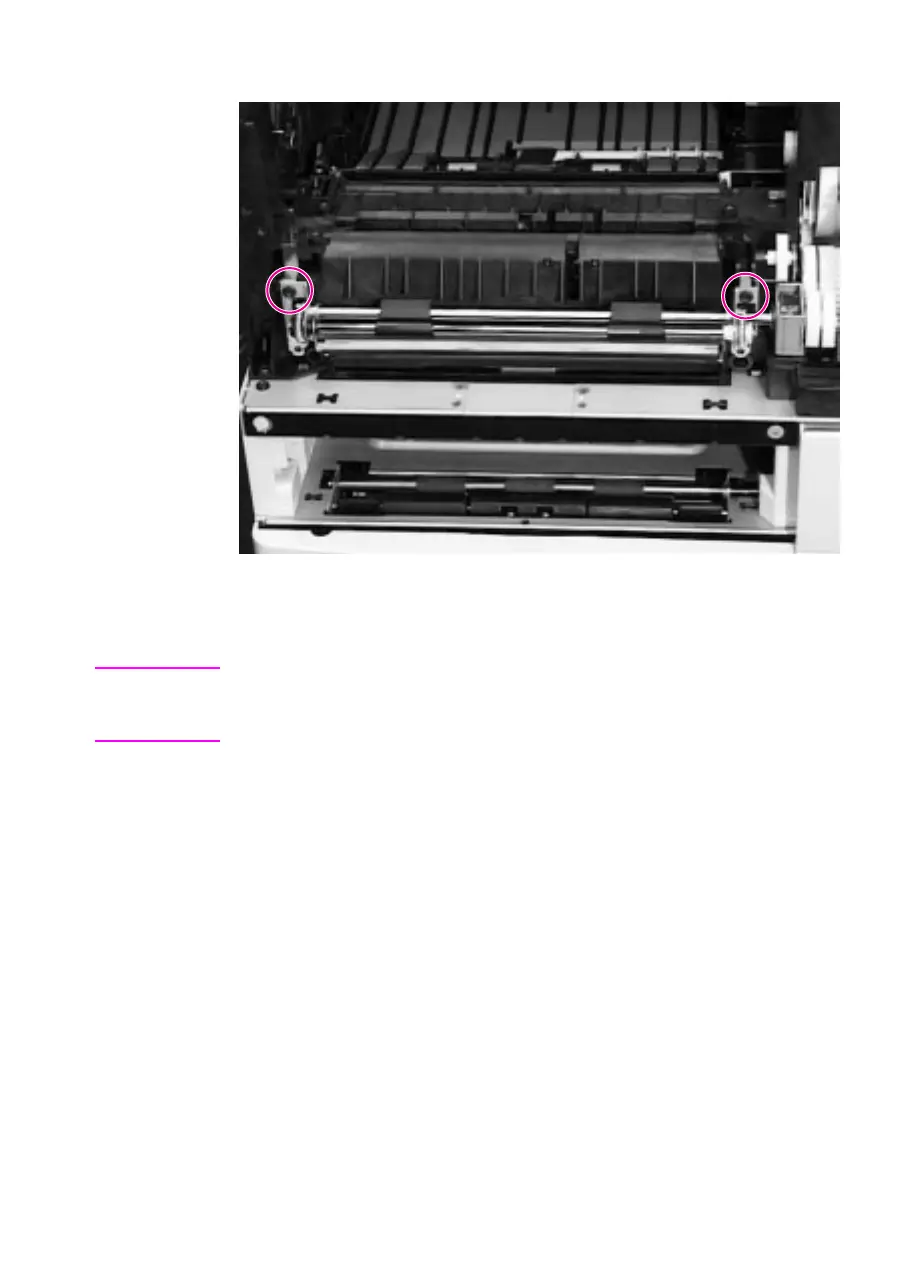

Figure 6-34 Removing the upper screws from the Paper Feed Assembly
3 Remove the 2 black upper screws.
Hint After replacing the Paper Feed Assembly, make sure to insert the 2
upper screws only. The 2 lower screws are for holding the Tray 1 Pickup
Assembly in place.
