HP M27h - Illustrated Parts Catalog; M24 h Parts Identification

8
3 Illustrated parts catalog

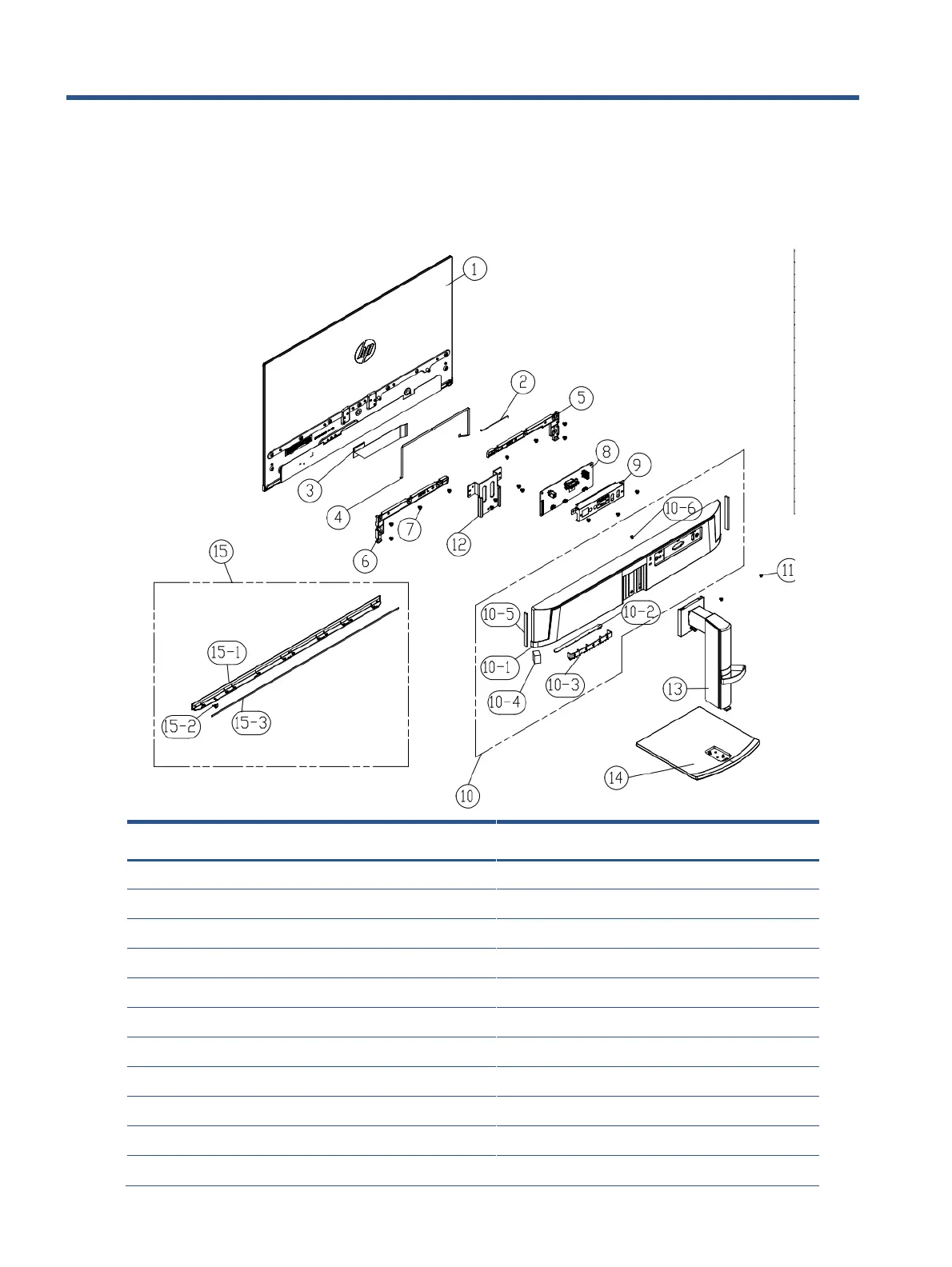

To identify the monitor major components, use this illustration and table.
M24h
Item Description Qty
1
[M238WF2-HSAKT LM238WF2-HSAKT Encore III M24fLCM
P/N(Block)
1
2
WH A1007H00-6P-2L/A1251-H06 28 75mm+ACETATE W/B HF
1
3
WH FFC 30P(1.0mm)180mm(IFOLD+PRO)GOV/ G/F
W/CONNAT5+BC)+AL HF
1
4
FFC 8P(0.5mm) 400mm (2FOLD+2PRO)/ 6OV G/F (A8+A8) HF
1
5
REAR SUPPORT-L CPCR-85% ABS+5% PET/MCK BLACK.
(6009-0337))(ENCORE 3-M24F)
1
6
REAR SUPPORT-R(PCR-85x A8S+5% PETAIACK BLACK (6009-
0537)/(ENCORE 3-M24f)
1
7
MAC. SCREW-MI M3.0*4.0L, BLK- Ni
14
8
MAIN BD ASS'Y HP Encore III M24h (LM238WF2-HSAK1) 2L
1
9
SHIELDING (SECC 0.5T(1A2H-AUDIO)(ENCORE3)
1
10
REAR COVER(ABS 85% POR +5% OBP/JACK BLACK (6009-
0337))(HD M24h)ASSY
1
10-1
REAR COVER(ABS 85% PCR +5% 0BP/JACK BLACK (6009-
0337))(Hp M24h)
1
