HP M27h - Connector Repair; HDMI and VGA Connector Identification

16

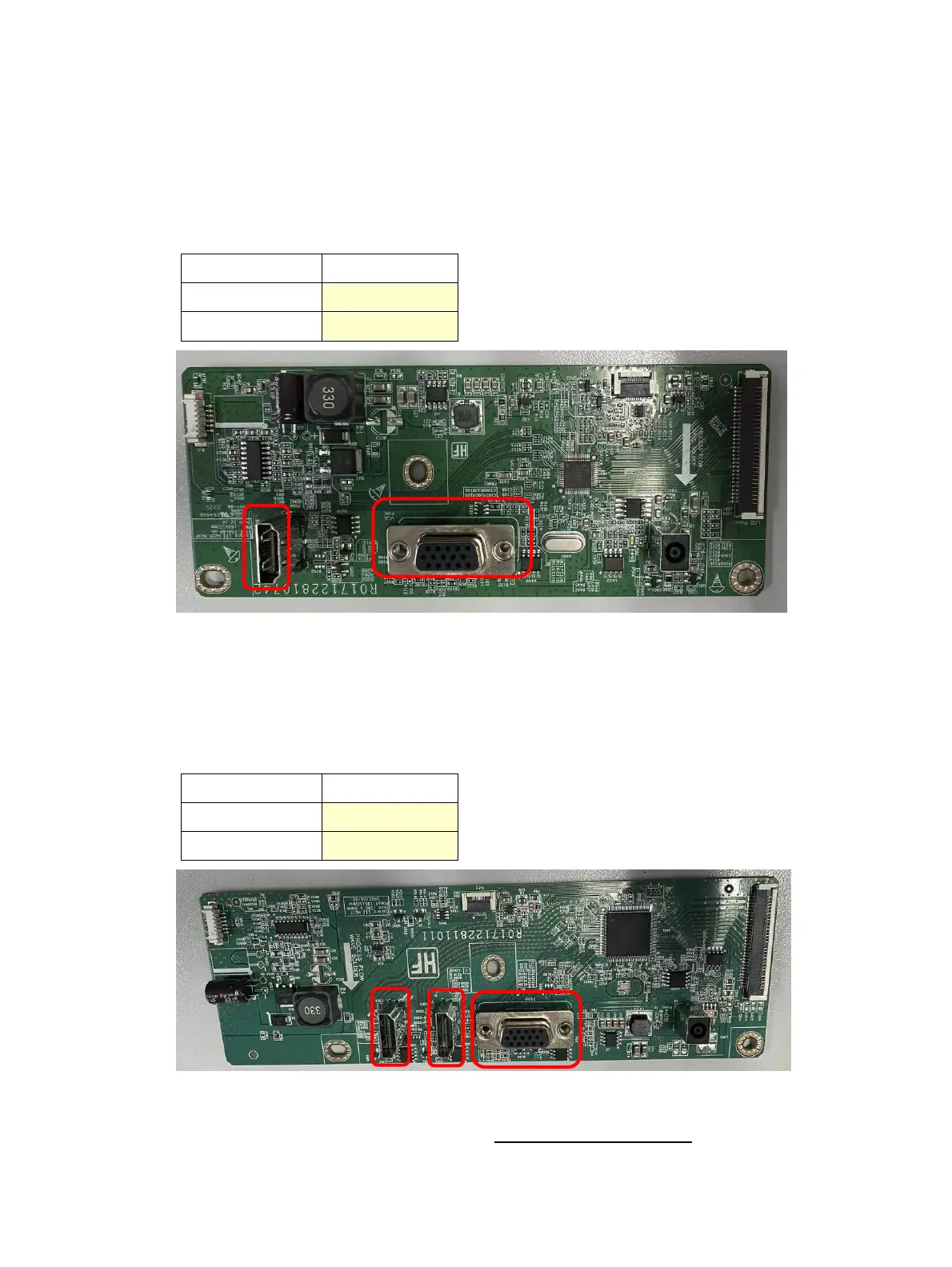

Connector repair
M24h:
This procedure includes HDMI and VGA connectors.
The connectors are on the main board (board part number R352447120150(AUO)/R352446920150(LHD))
The connectors identifiers are as follows:
Connector Location
HDMI P200
VGA P100
M27h
This procedure includes HDMI and VGA connectors.
The connectors are on the main board (board part number R352731320150(AUO)/ R352731220150(LHD))
The connectors identifiers are as follows:
Connector Location
HDMI 1/2 P200/P300
VGA P100
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 12.
P300
P200
P100
P200
P100
