14

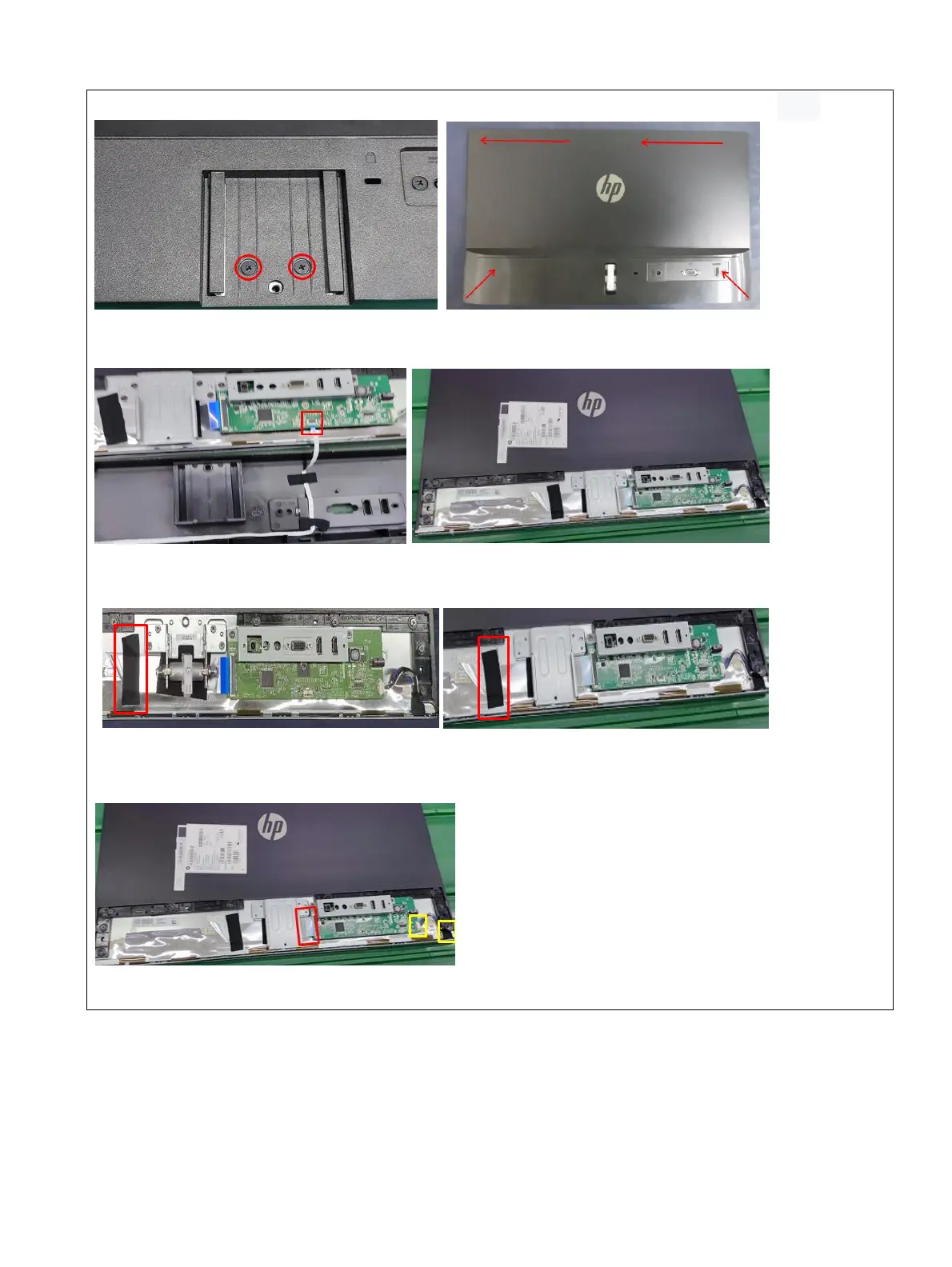

Step 2: Remove the 2 screws from the back cover and use tools to open the back cover
Step 3: Remove the 8pin FFC from main board then remove rear cover
Step 4: Remove 2 strip of acetate tape from the LVDS/LED cable.
Step 5: Pull out the LVDS/ LED cable to panel.
Step 6: Remove the six screws from the bracket and mainboard.
