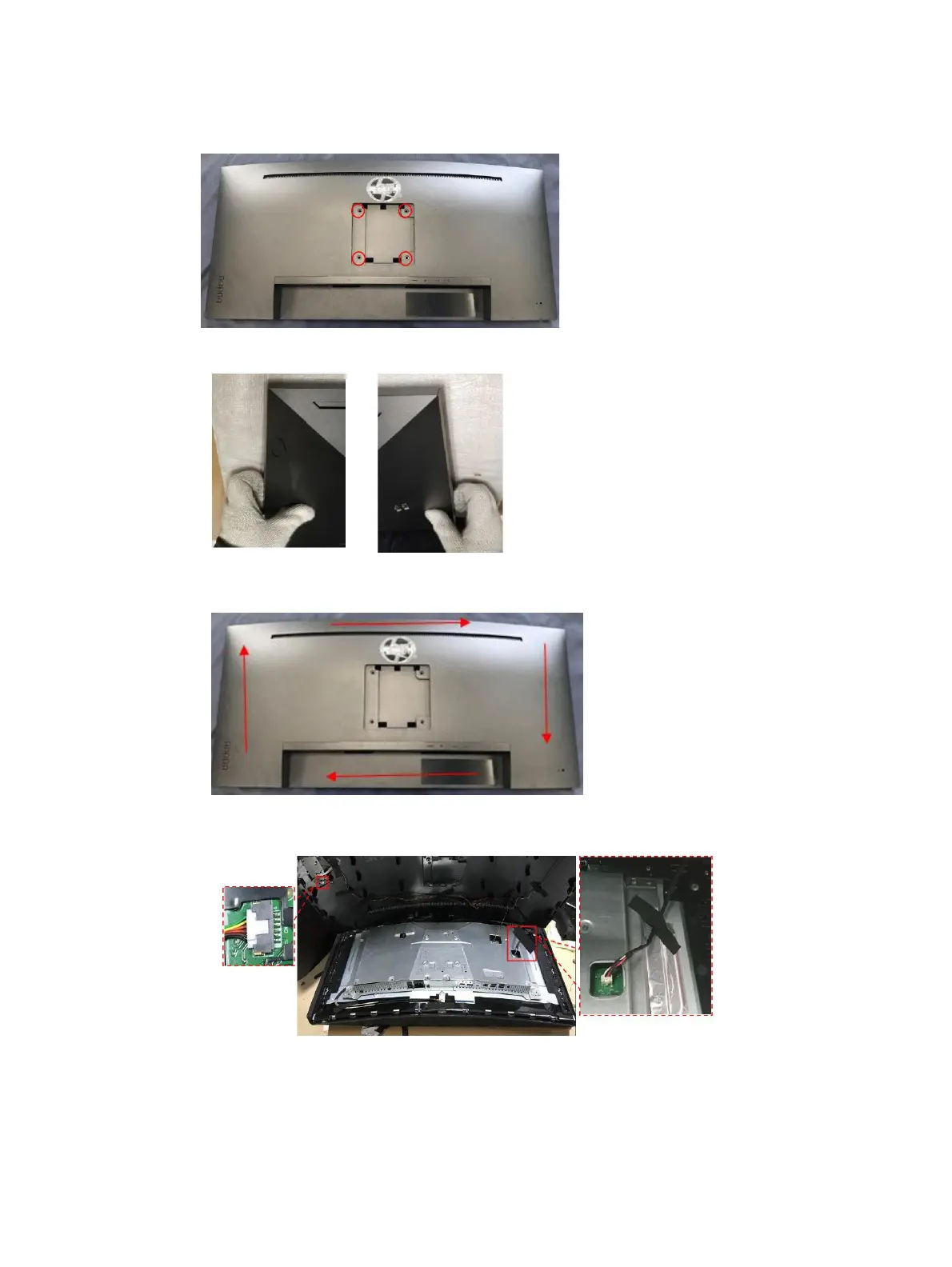

Remove the Rear Cover:
1) Remove four screw from the rear case.
2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate.
The hook opens. Repeat the steps.
4) Lift the rear cover and remove the key board wire and speaker wire from the interface-board.
5) Disassemble the Key board and LED board from the Rear Cover (if required).
6) Remove 2 screws from the bracket.
