7) Disassemble 9 screws from the board.
8) Disassemble all the boards from housing
9) Disassemble the USB board from the Rear Cover (if required).
Power board
The power board part number is PLPCKL482UQB2.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
Remove the power board:

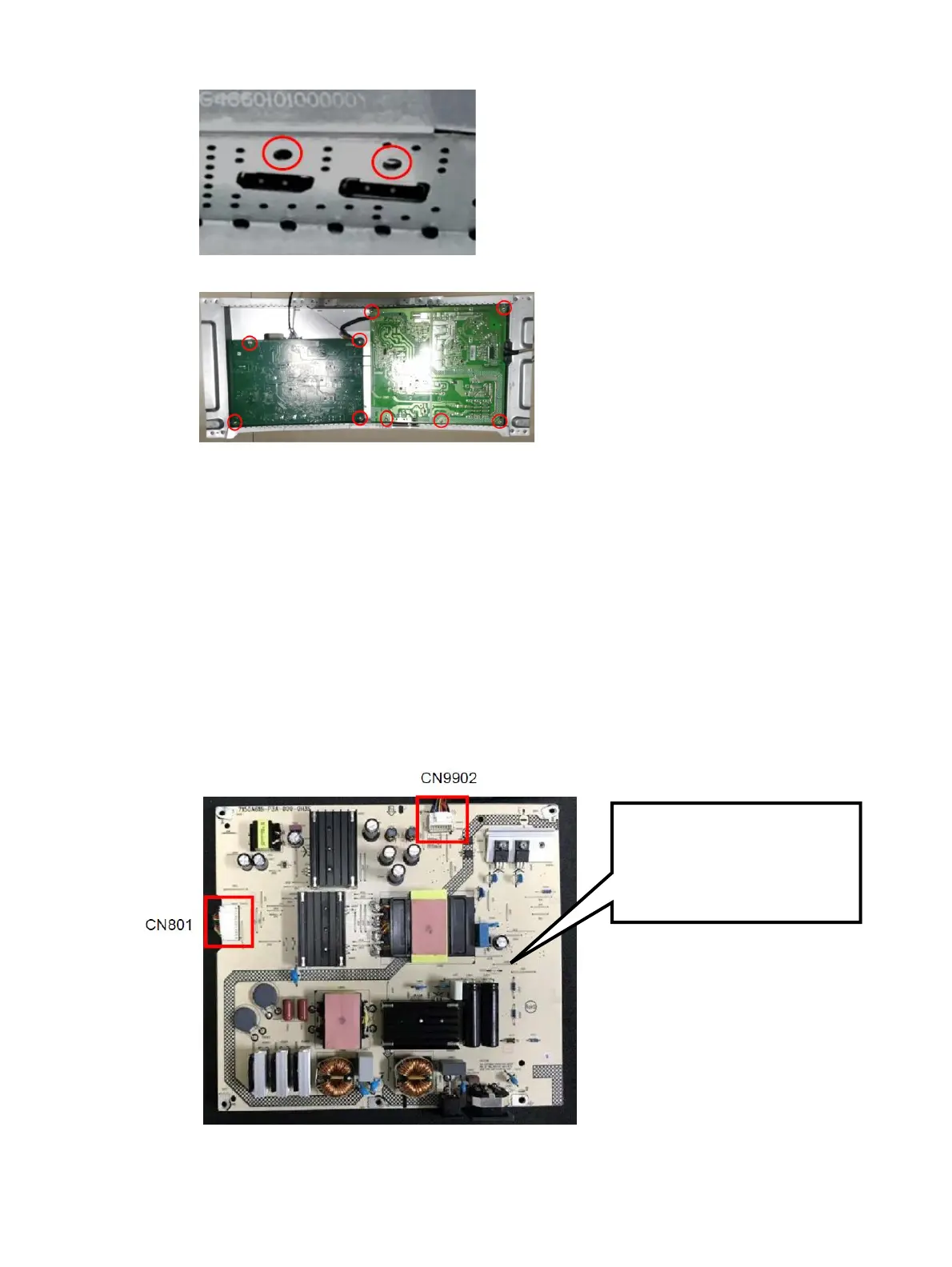

1) The HP M34D power board connector position is as follows:
2) Locate the part number location on the board.
Warning: After unplugging the
power supply, the capacitance
is still charged, do not touch
and discharge the capacitor.
