USB B TYPE connector CN1001
Repair the USB B Type connector

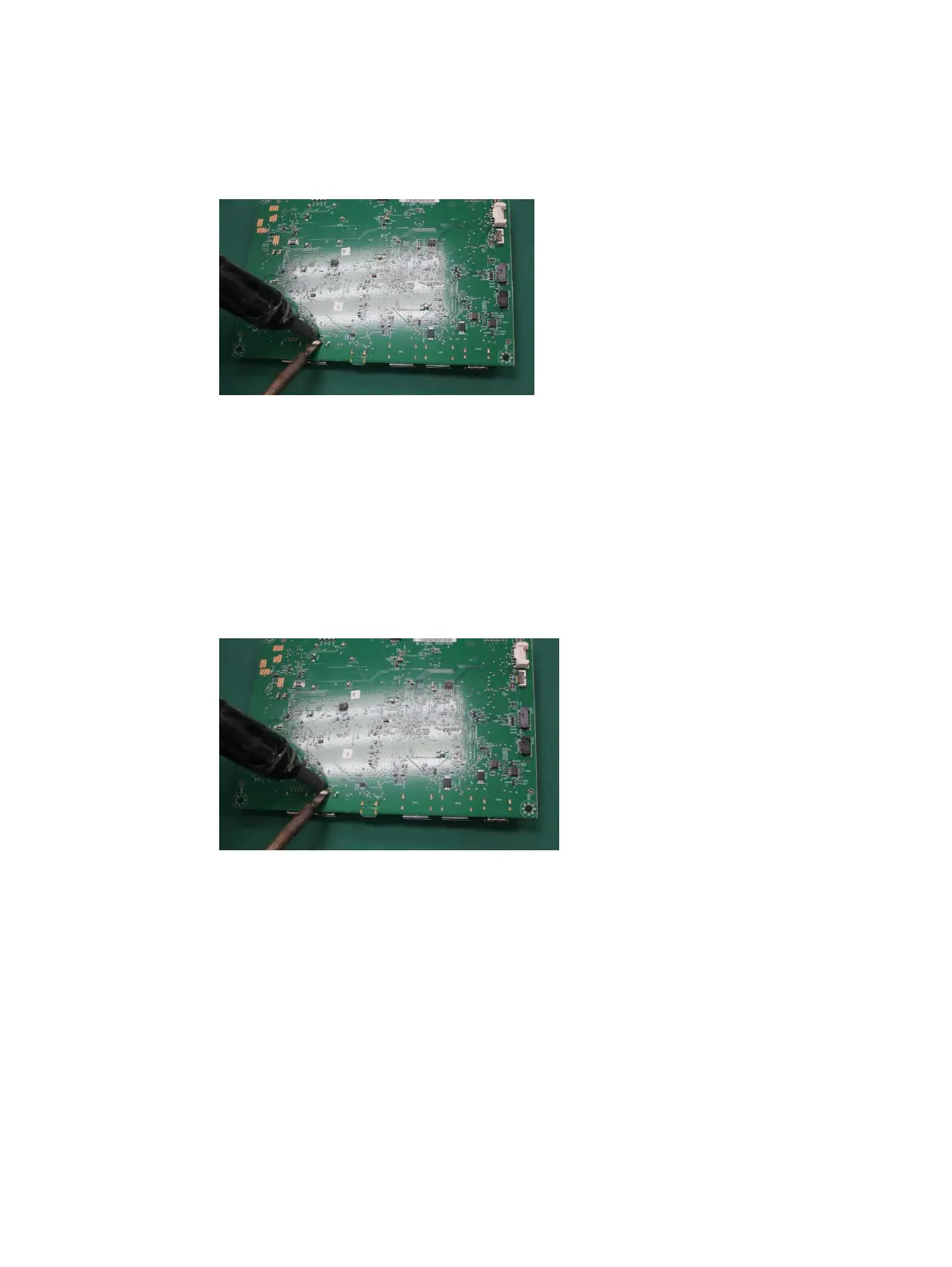

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN1001 connector from the PCB.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
USB3.0 connector CN1004&CN1005
Repair the USB 3.0 connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN1004, CN1005 connector from the PCB.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
