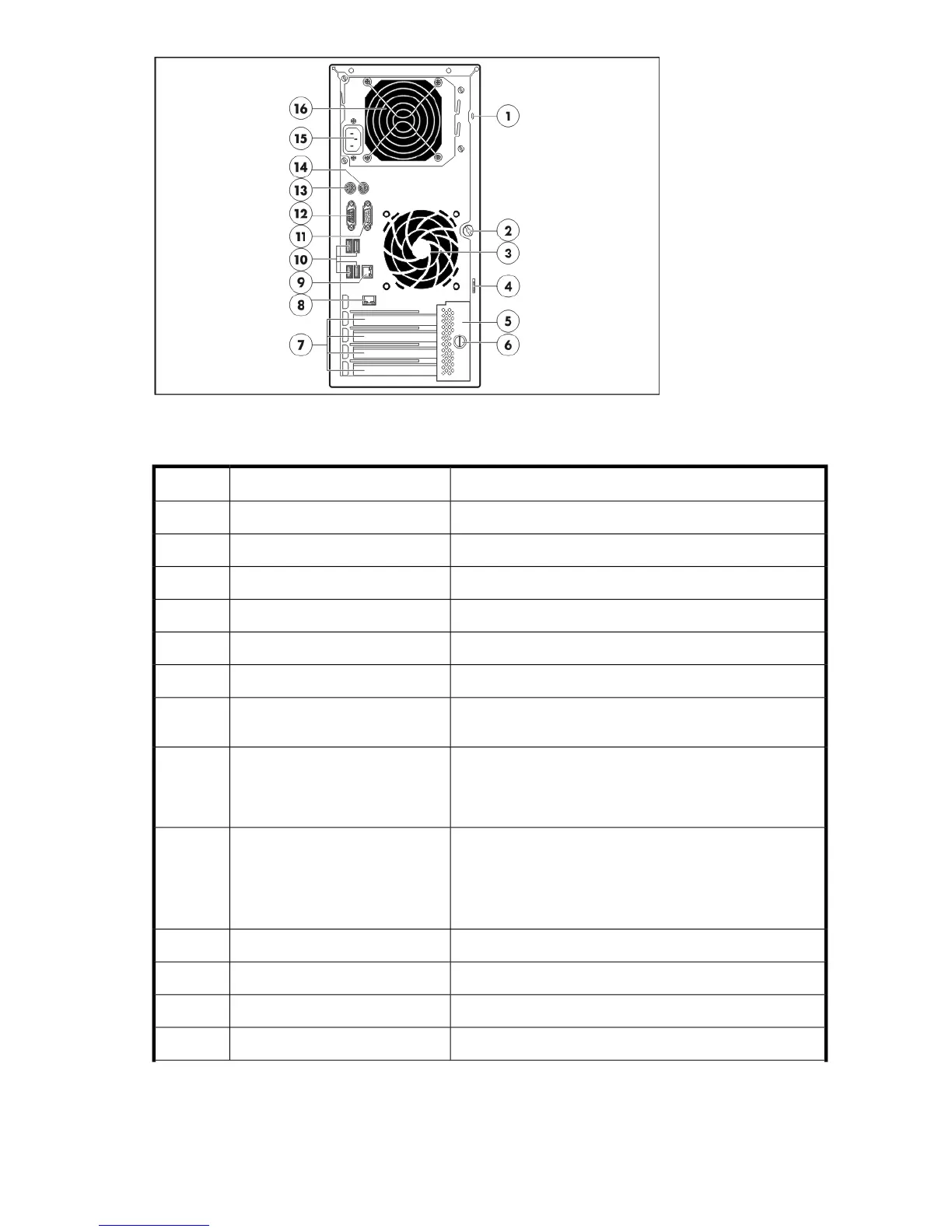

Figure 5 ML110 G5 rear panel
Table 8 ML110 G5 rear panel components
StatusDescriptionItem
N/AKensington lock notch1
N/AAccess panel thumbscrew2
N/ASystem fan3
N/ACable lock provision notch4
N/APCI slot cover retainer5
N/APCI slot cover retainer thumbscrew6
One slot populated with HP Smart Array E200 controller
(excluding the 2HDD 320 GB SATA model)
PCI slot covers7
Management NIC activity and link
Lights-Out remote management
port (optional)
8
Blinking green = Ongoing network activity
Green = Existing network link
Embedded NIC link and activity
Embedded NIC port (RJ-45)9
Orange = 10/100 Mbps connection
Green = GbE link connection
Blinking yellow = Ongoing network activity
N/AUSB 2.0 ports10
N/ASerial port11
N/AVideo port12
N/APS/2 keyboard port13
HP ProLiant Storage Server 35
