HP ML110 - ProLiant G5 2TB Storage Server NAS - ML350 G5 Rear Panel; ML350 G5 Rear Panel Components

StatusDescriptionItem
Green = Normal
External health LED (power
supply)
4
Amber = Power redundancy failure
Red = Critical power supply failure
Green = Network link
NIC 1 activity LED5
Flashing = Network link and activity
Off = No network connection
Blue = Activated
UID LED6
Flashing = System remotely managed
Off = Deactivated
N/AUID button7
N/AUSB connectors (2)8
N/ARemovable media bays (4)9
N/ADVD+R/RW drive10
See “SAS and SATA hard drive LED combinations” on page
47 for HDD LED status descriptions.
Hot-plug hard drive bays11
15751
1
7
8
9
10
11
12
13
14
15
16
17
18
2
3
4
5
6

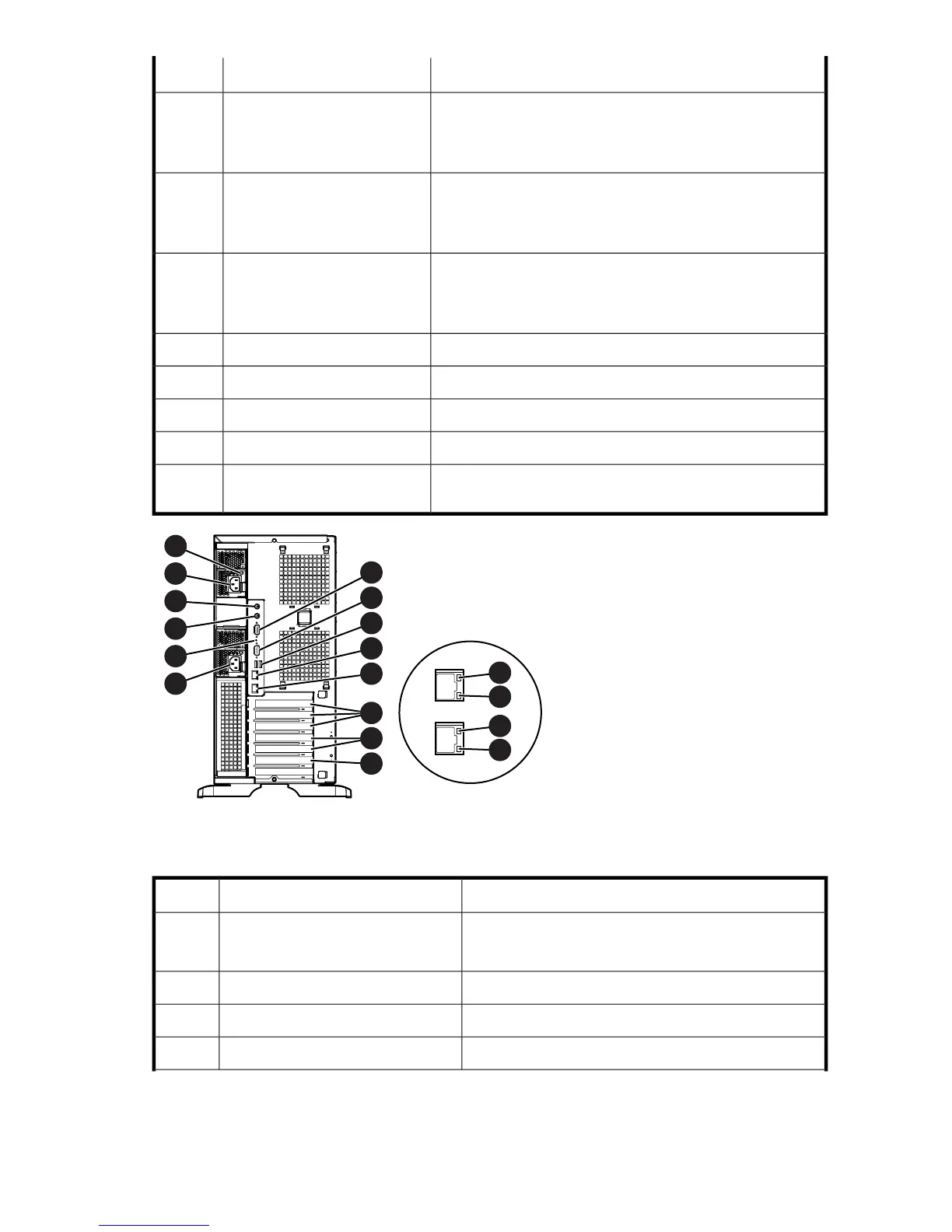

Figure 9 ML350 G5 rear panel
Table 12 ML350 G5 rear panel components
StatusDescriptionItem
Green = Power supply is on and functioning
Power Supply LED1
Off = No power or inadequate power supply
N/APower cord connector2
N/AKeyboard connector3
N/AMouse connector4
HP ProLiant Storage Server 39
