StatusDescriptionItem
Off = Deactivated
N/AVGA port11
Flashing green = Ongoing network activity
HP LO100i Management LAN
Port
12
Green = Existing network link
N/AUSB 2.0 ports13
Green = 10/100 Mbps connection
GbE LAN port for
NIC1/Management
14
Orange = 1000 Mbps connection
N/APS/2 keyboard port (purple)15
ML350 G5 hardware components
The following figures show components, controls, and indicators located on the front and rear panels
of the ML350 G5.
15750
9
10
11
1
2
3
4
5
6
7
8
1 2 3 4 5 6

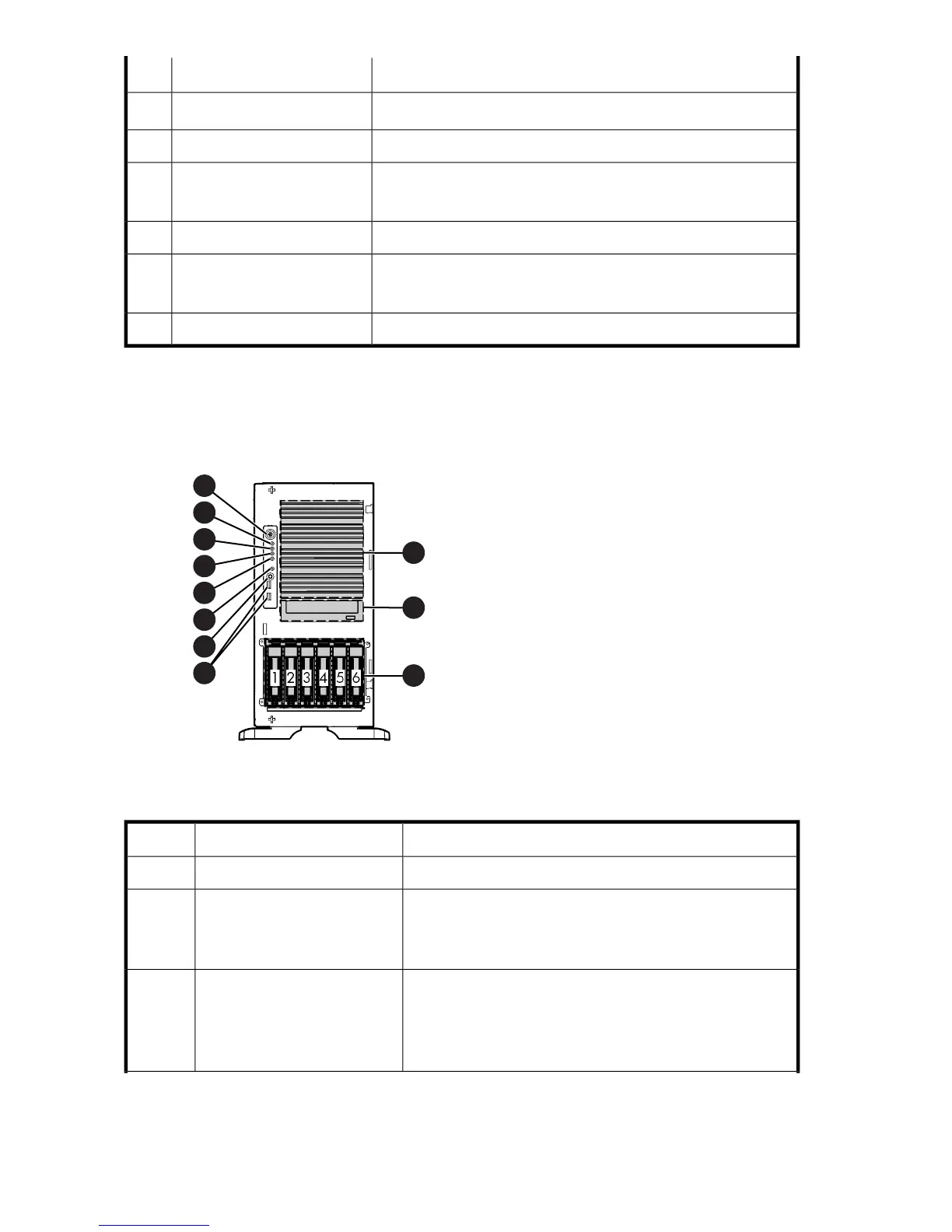

Figure 8 ML350 G5 front panel
Table 11 ML350 G5 front panel components
StatusDescriptionItem
N/APower on/Standby button1
Green = Power on
Power LED2
Amber = System shut down, but power still applied
Off = No power
Green = Normal
Internal health LED3
Amber = System health is degraded
Red = System health is critical
Off = Normal (when in standby mode)
Server components38
