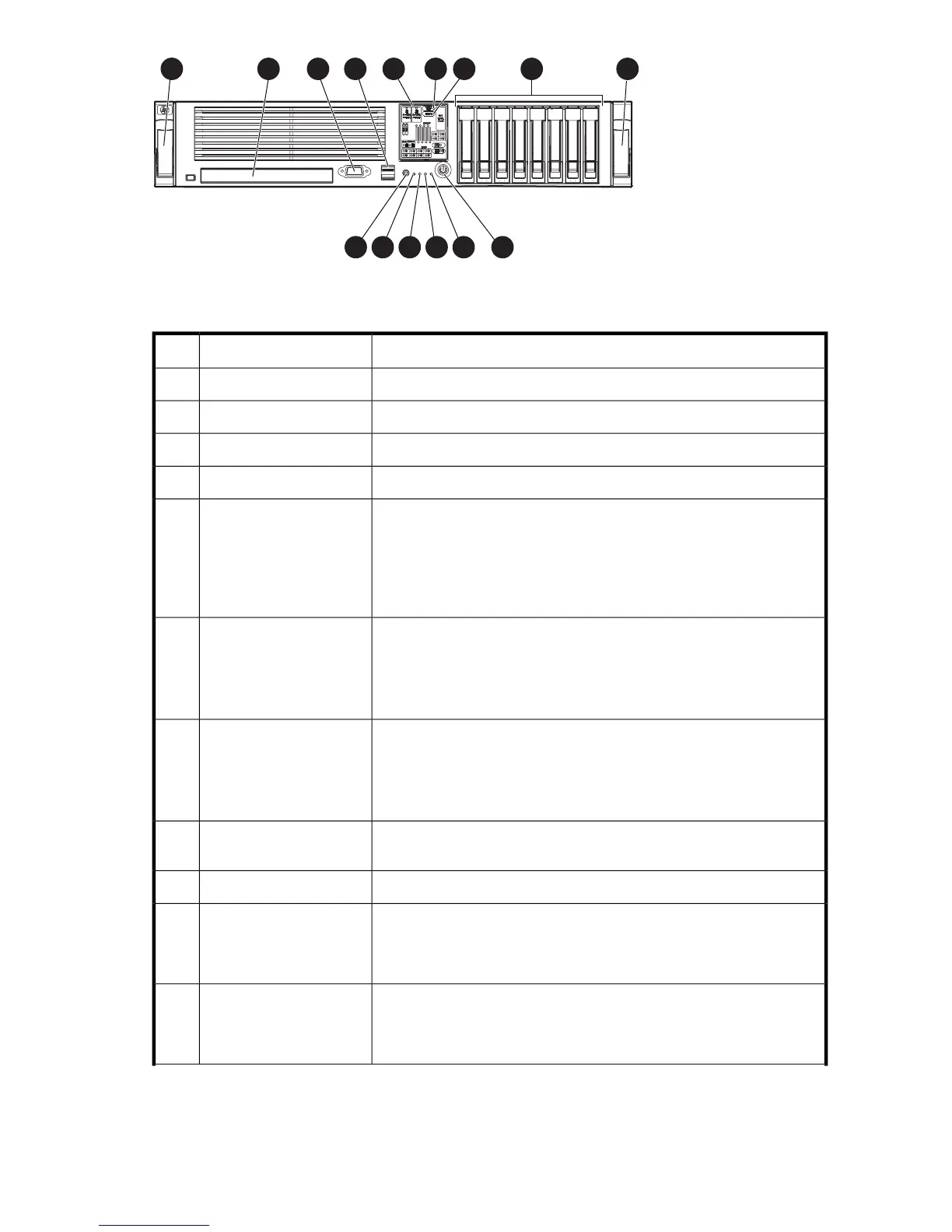

Figure 10 DL380 G5 front panel
Table 13 DL380 G5 front panel components
StatusDescriptionItem
N/AQuick release lever1
N/ADVD-RW drive2
N/AVideo connector3
N/AUSB connectors (2)4
LEDs off = Normal
Systems Insight Display5
LEDs amber = Failure
See “Systems Insight Display LEDs and internal health LED
combinations” on page 48 for LED status information.
See below for online spare and mirror LED status.
Off = No protection
Online spare LED6
Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration error
Off = No protection
Mirror LED7
Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration error
See “SAS and SATA hard drive LED combinations” on page 47 for HDD
LED status descriptions.
Hard disk drive (HDD)
bays
8
N/AQuick release lever9
Blue = Activated
UID LED button10
Flashing = System being remotely managed
Off = Deactivated
Green = Normal
Internal health LED11
Amber = System degraded
Red = System critical
HP ProLiant Storage Server 41
