HP MP9 G2 Retail System User Manual

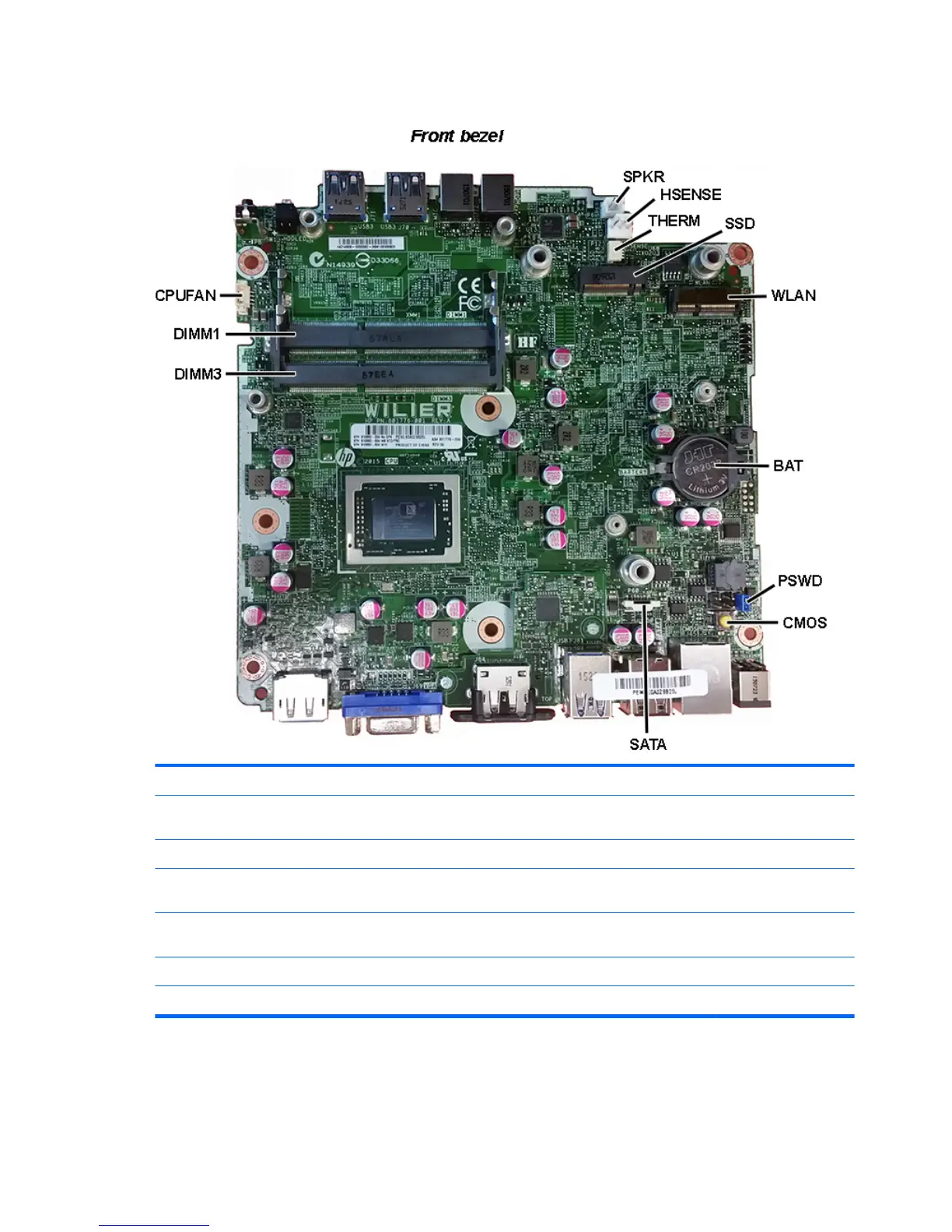

System board callouts, EliteDesk 705
Sys Bd Label Color Component Sys Bd Label Color Component
SPKR White Speaker connector PSWD Black/blue Password header and
jumper
HSENSE White Hood sensor connector CMOS Yellow CMOS reset button
THERM White Thermal sensor SATA Blue Hard drive data
connector
SSD Black Solid-state module
socket
DIMM3 Black Secondary memory
socket
WLAN Black WLAN module socket DIMM1 Black Primary memory socket
BAT Black RTC battery CPU FAN White Fan connector
