(5) at the desired position and then fully tighten the pole clamp screw to anchor the AP against
the pole (5). Attach the second pole clamp (4) in the same manner as the first, also firmly
tightening it.

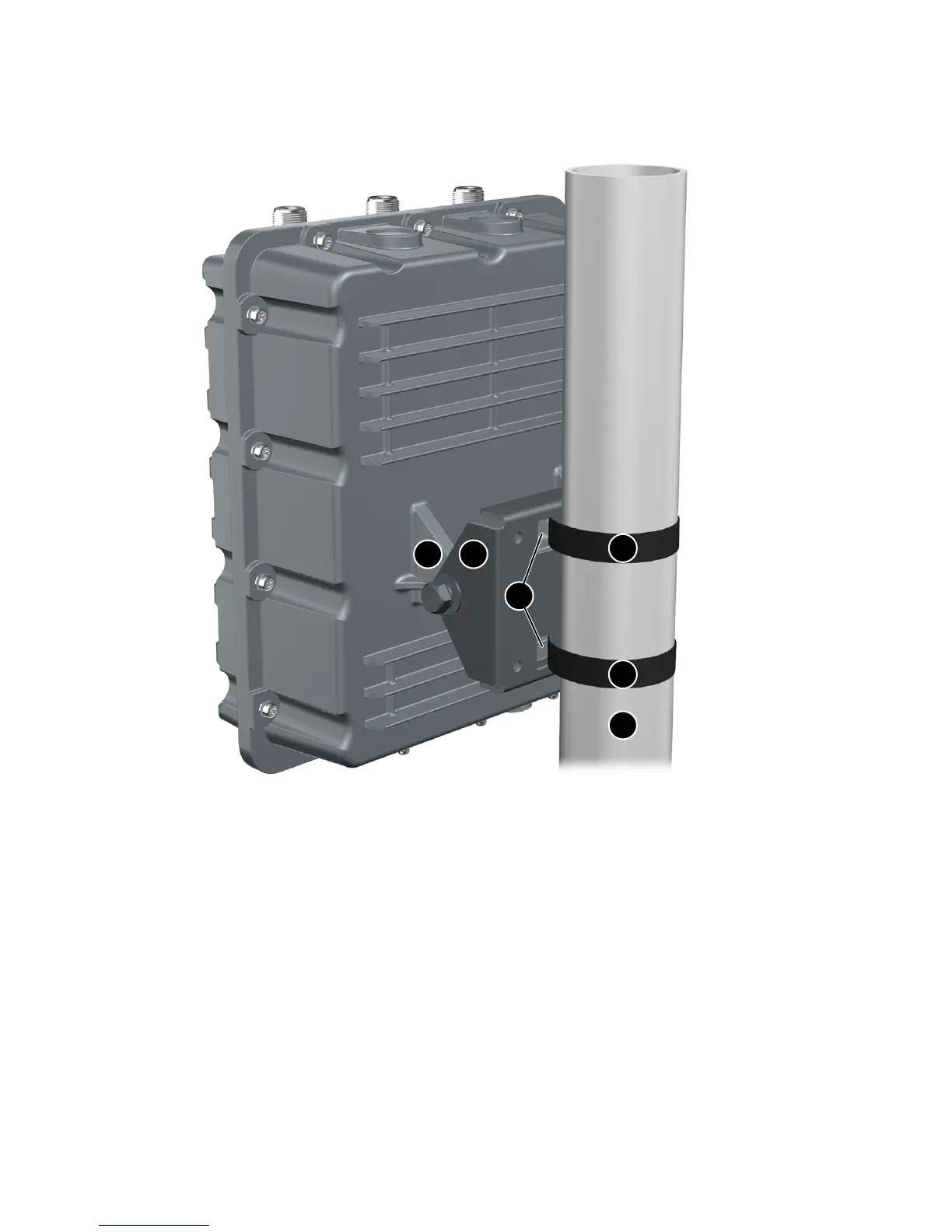

Figure 6 AP mounted on pole
1 2
5
3
4
4
5. Pole3. Pole clamp slot (x4)1. Bracket post
4. Pole clamp (x2)2. Bracket
10. Rotate the AP body up or down to the desired position and then tighten the bracket bolts to
50 kgf-cm (43.4 lbf-in).
