Wall installation
1. Refer to Figure 7. Hold the mounting bracket as a drilling template against the wall at the
desired position with the two bracket bolt holes (4) facing the left and right sides. Using the
four screw holes on the bracket (1), mark four holes for the screws (wall anchors).

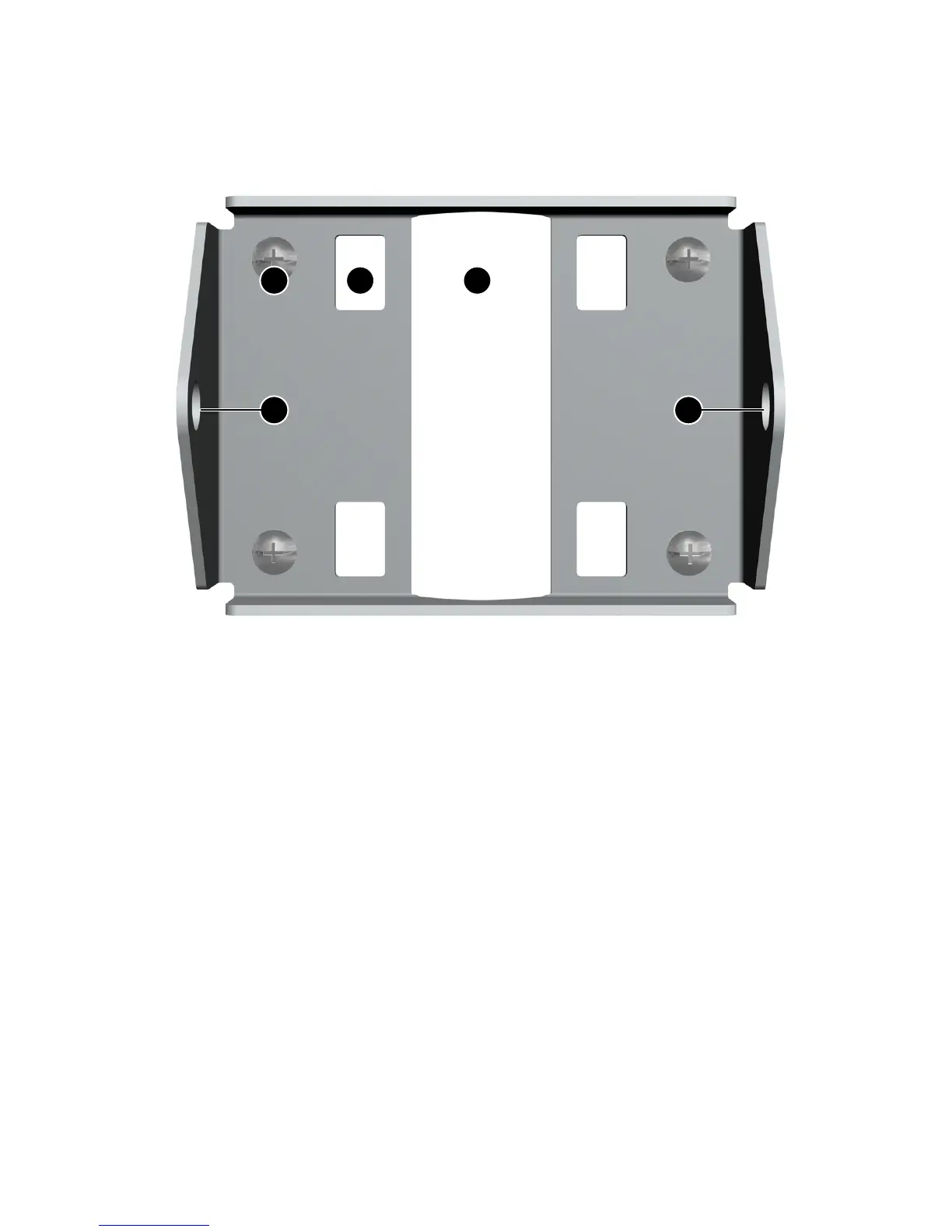

Figure 7 Mounting bracket
3. Pole cut out1. Screw holes (x4) (screws shown)
4. Bracket bolt hole (x2)2. Pole clamp slot (x4)
2. Drill four holes for the wall anchors, 4.7 mm (3/16 inch) in diameter.
3. Insert the anchors and tap them flush with the wall surface.
4. Fasten the AP bracket to the wall with the provided screws.
12 Installing
