5. Refer to Figure 8. Locate the two bracket bolts (1), the two lock washers (2), and the four flat
washers (3, 5). Onto each bracket bolt (1), thread a lock washer (2) followed by a flat washer
(3). Push both washers against the bracket bolt (1) head.

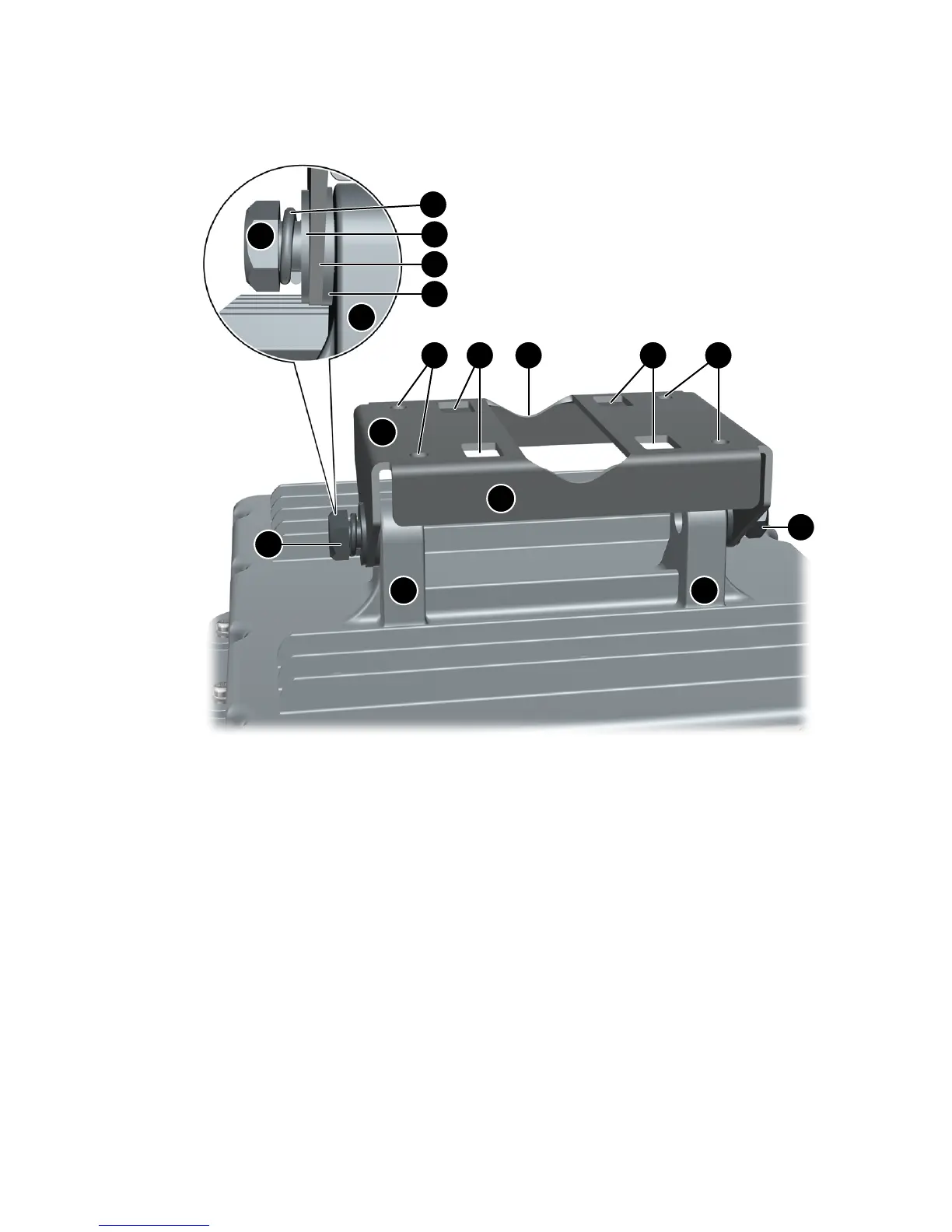

Figure 8 Mounting Bracket Attached (wall not shown)
7. Screw hole (x4)4. Bracket1. Bracket bolt (x2)
8. Pole clamp slot (x4)5. Flat washer (x2)2. Lock washer (x2)
9. Pole cut out6. Bracket post (x2)3. Flat washer (x2)
6. Hold the AP up to the mounting bracket (4), angling the AP so that it is parallel with the
mounting bracket (4) and the bolt holes align.
7. Have an assistant hold the AP in place with the bolt holes aligned. On one side of the AP,
slide in a second flat washer (5) between the bracket (4) and the bracket post (6), and while
holding the edge of this flat washer (5), thread the bracket bolt (1) (with the lock washer (2)
and flat washer (3) already threaded) through the hole in the bracket (4), through the second
flat washer (5), and then screw the bracket bolt (1) sufficiently into the bracket post (6) so that
the threads fully grip.
8. Repeat step 7 above for the second bracket bolt (1).
Mounting the AP 13
