HP MSM466-R Installation Guide

9. Verify that the bracket (4) is now connected to the AP and the wall as illustrated in Figures 8
and 9, respectively.

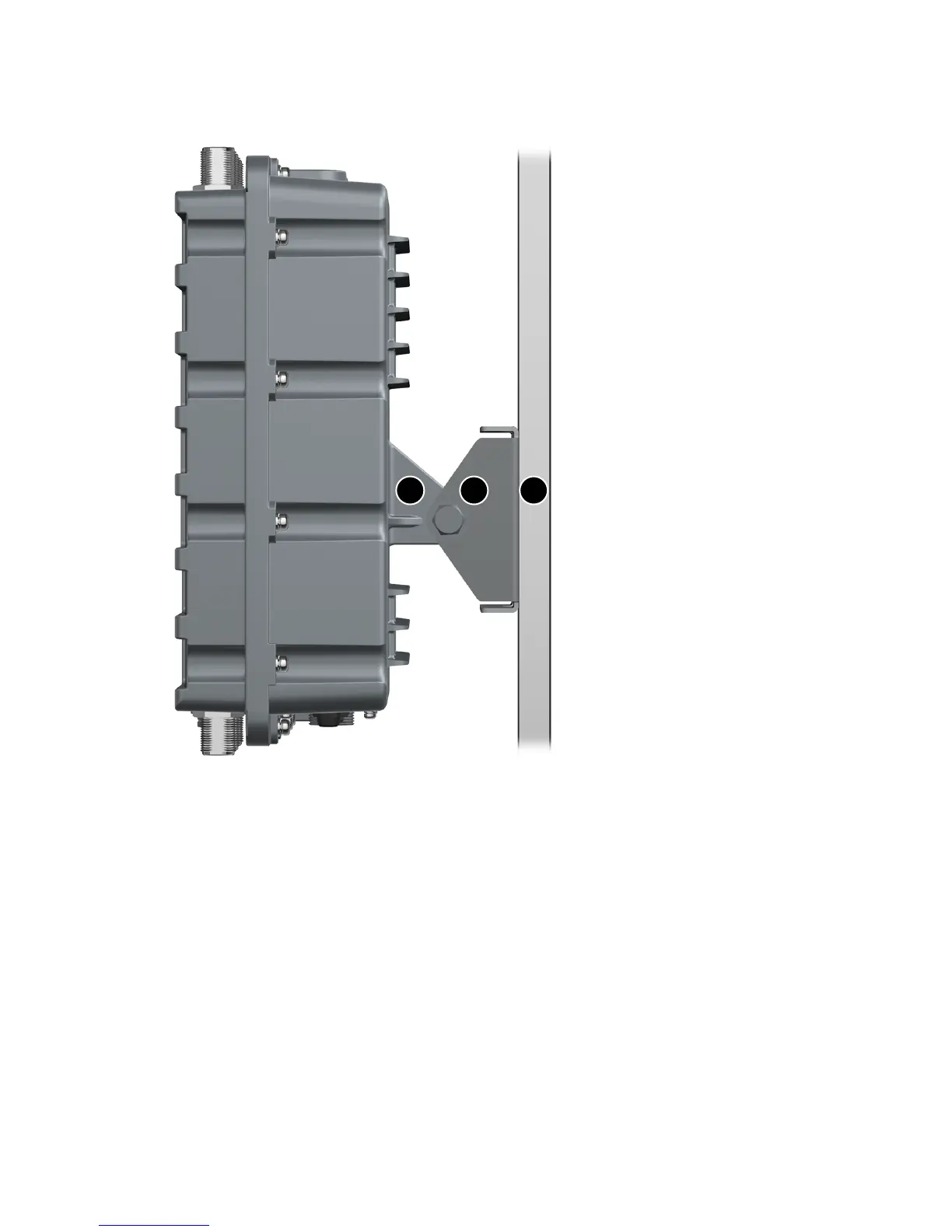

Figure 9 AP mounted on wall
1 2 3
3. Wall2. Bracket1. Bracket post
10. Rotate the AP up or down to the desired position and then firmly tighten both bracket bolts to
50 kgf-cm (43.4 lbf-in).
14 Installing
