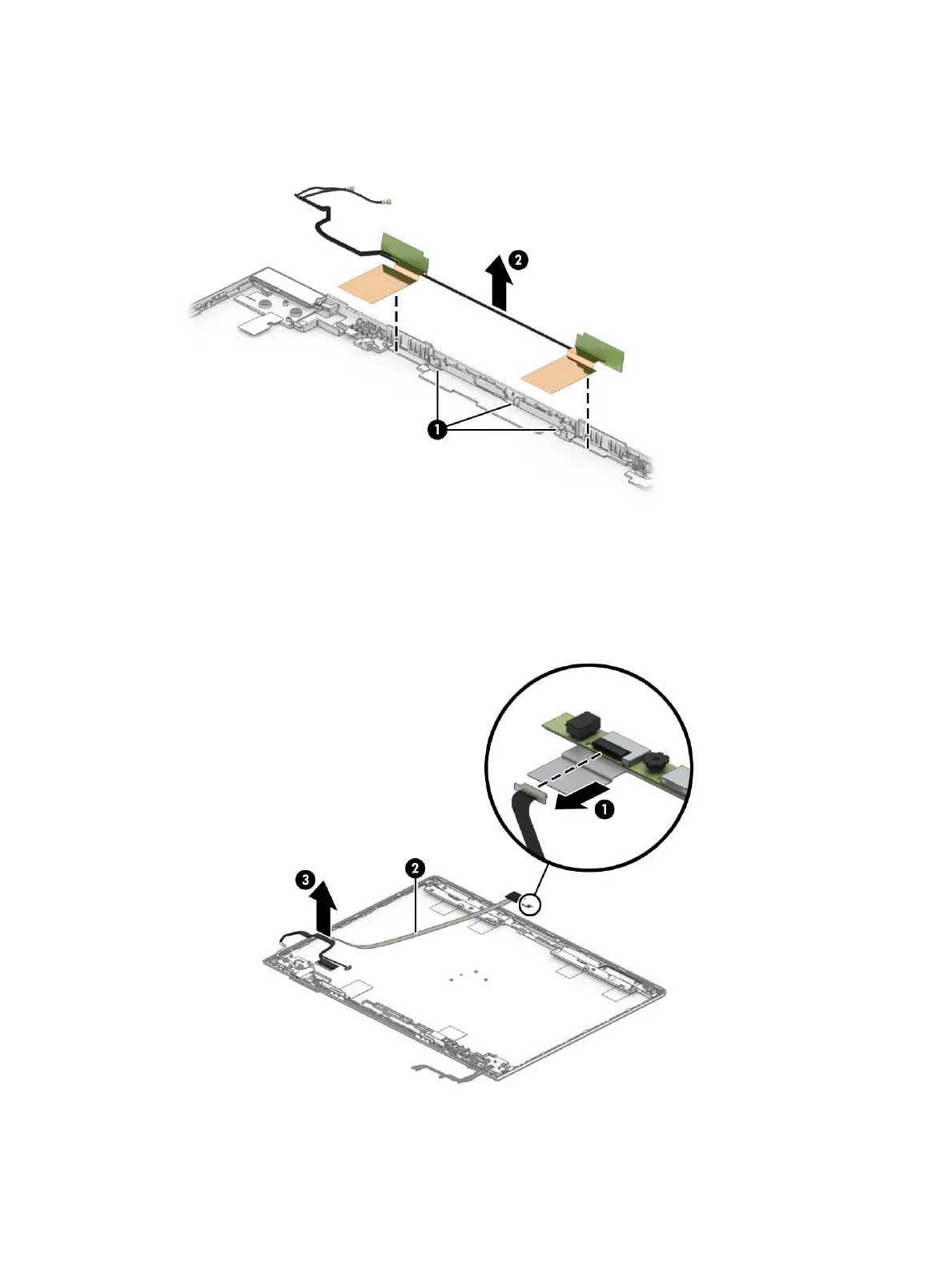

13. If it is necessary to replace the WLAN antennas, remove the cables from the clips in the bottom of the
enclosure (1), and then peel the antennas and remove them from the display enclosure (2).
WLAN antennas are available as spare part number L78070-001.
14. If it is necessary to remove or replace the display/camera cable, use the following steps:
a. Disconnect the cable from the ZIF connector on the camera module (1).
b. Pull the cable up to disengage it from the adhesive that secures it to the inside of the enclosure (2),
and then remove the cable from the enclosure (3).
The touch display cable is available as spare part number L78089-001.
Reverse this procedure to reassemble the display assembly.
58 Chapter 5 Removal and replacement procedures for authorized service provider parts
