84 • Configuration HP NonStop SSL Reference Manual

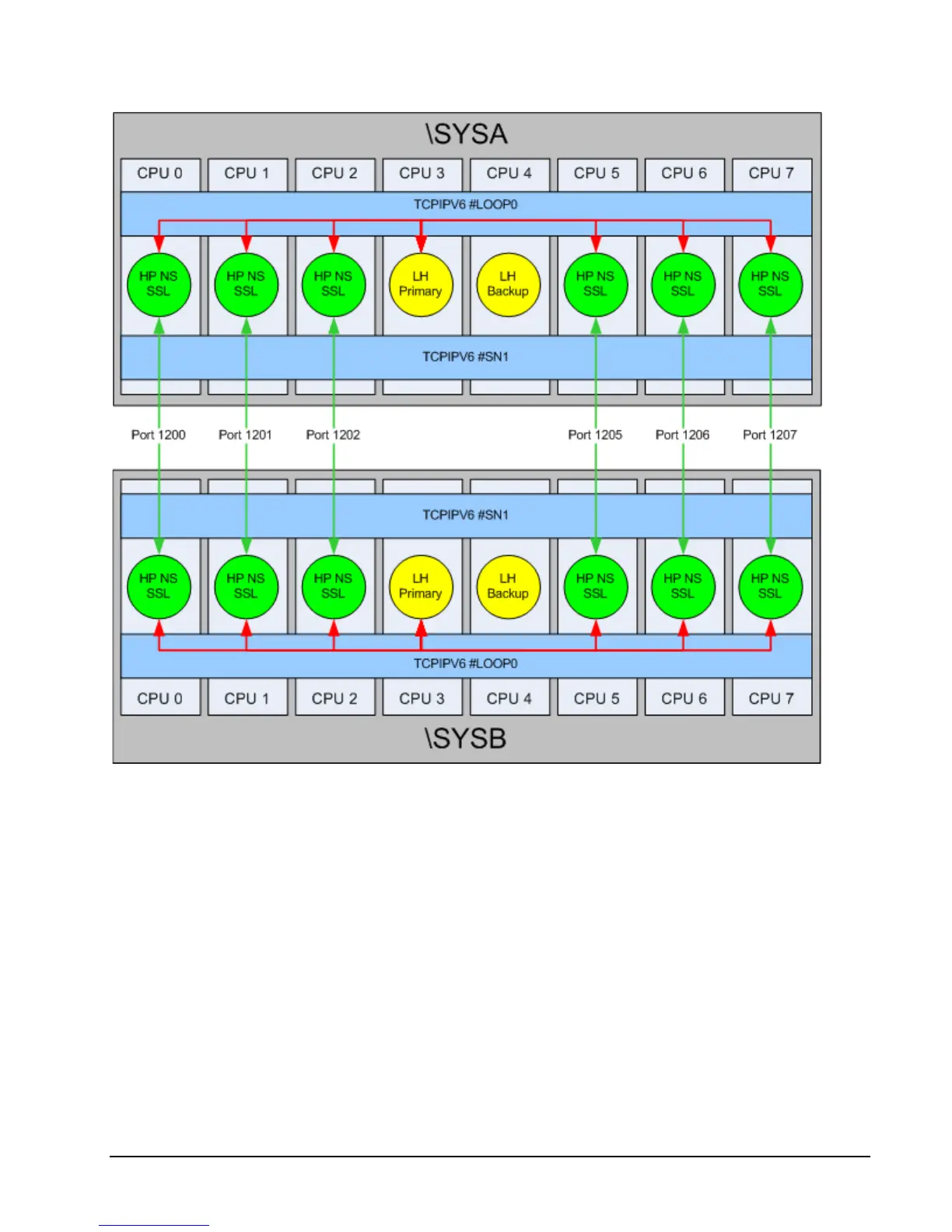

The following steps have been performed for the above setup:
1. An Expand Multi-Line path was created on each system.
• 2 CPUs were selected for the LH primary and backup.
• To distribute SSL CPU load over the remaining CPUs, 6 lines were created for the path.
• A unique port number was selected for each line (SRCIPPORT and DESTIPPORT can be identical).
• DESTIPADDR of all lines was set to the loopback address (127.0.0.1).
2. Six HP NonStop SSL EXPANDS persistent processes were created on both systems.
• A different CPU was selected for each SSL process.
• The SSL tunnel was associated to the line using the same SRCIPPORT and DESTIPPORT parameters as in
the line configuration.
• The DESTIPADDR parameter of the HP NonStop SSL EXPANDS processes was set to the remote
system's IP address.
