5–34 Maintenance and Service Guide
Removal and Replacement Procedures

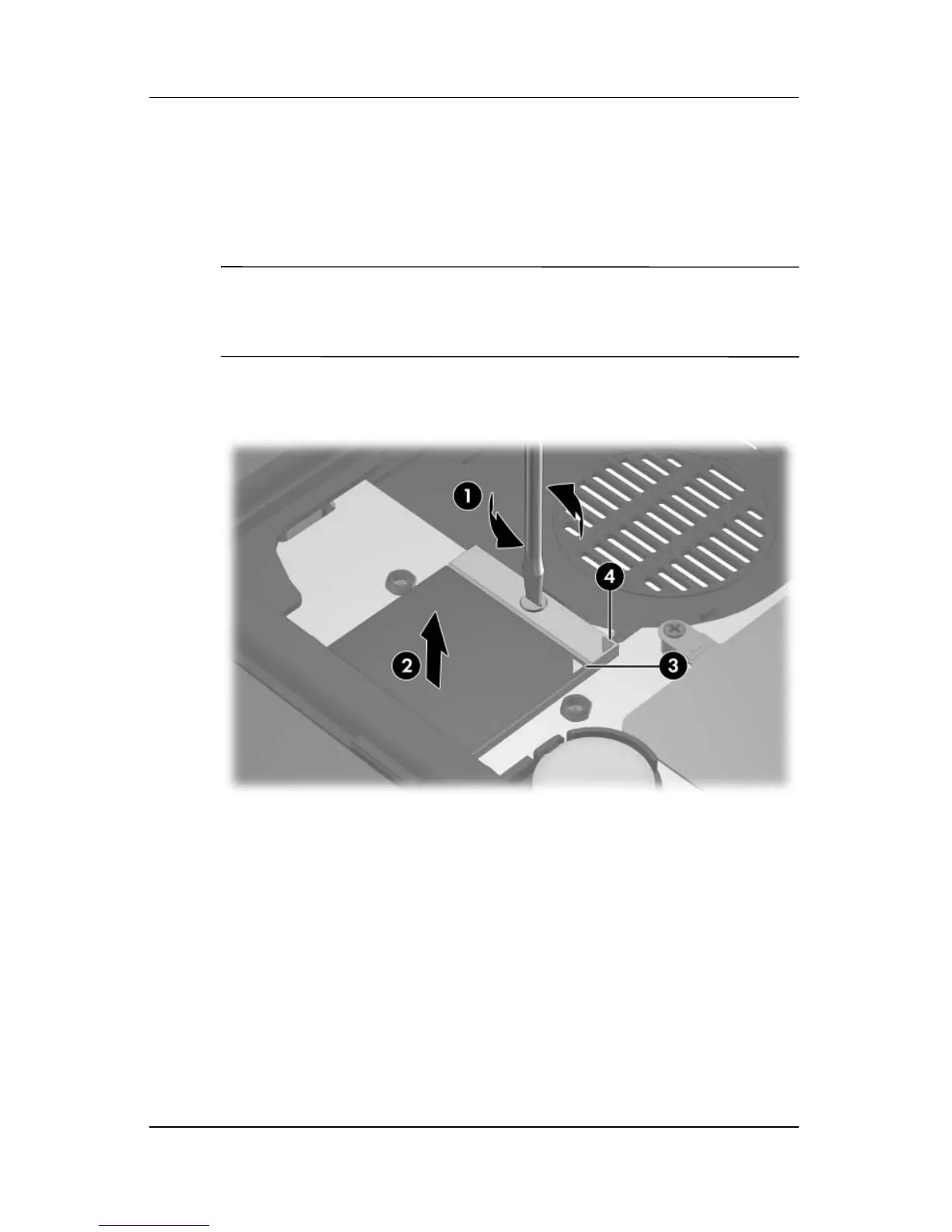

5. Use a flat-bladed screwdriver to turn the processor locking
screw 1 one-half turn counterclockwise until you hear a
click.
6. Lift the processor 2 straight up and remove it.
✎
The gold triangle 3 on the processor should be aligned with
the triangle icon 4 embossed on the processor socket when
you install the processor.
Removing the Processor
Reverse the above procedure to install the processor.
