3. Make note of which antenna cable is attached to which
antenna clip on the Mini Card WWAN module before
disconnecting the cables, then disconnect the auxiliary and
main antenna cables 1 from the module.
4. Remove the two Phillips PM2.0×4.0 screws 2 that secure
the Mini Card WWAN module to the computer.
5. Remove the Mini Card WWAN module 3 by pulling the
module from the socket at an angle.
✎
Mini Card WWAN modules are designed with notches 4 to
prevent incorrect installation.

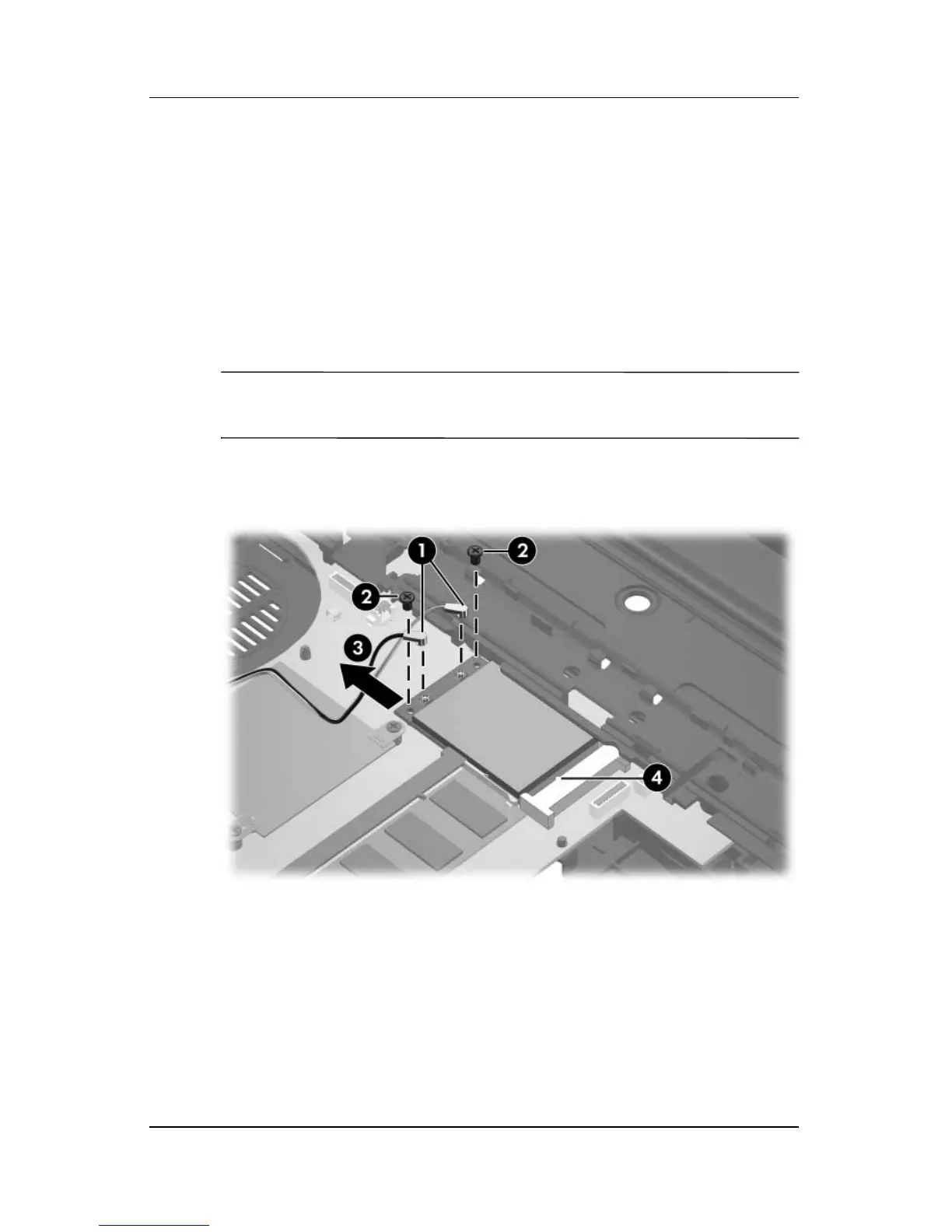

Removing a Mini Card WWAN Module
Reverse the above procedure to install a Mini Card WWAN
module.
