Displa
y Componen
t Rec
yc
ling
Maintenance and Serv
ice Gui
de
C–13

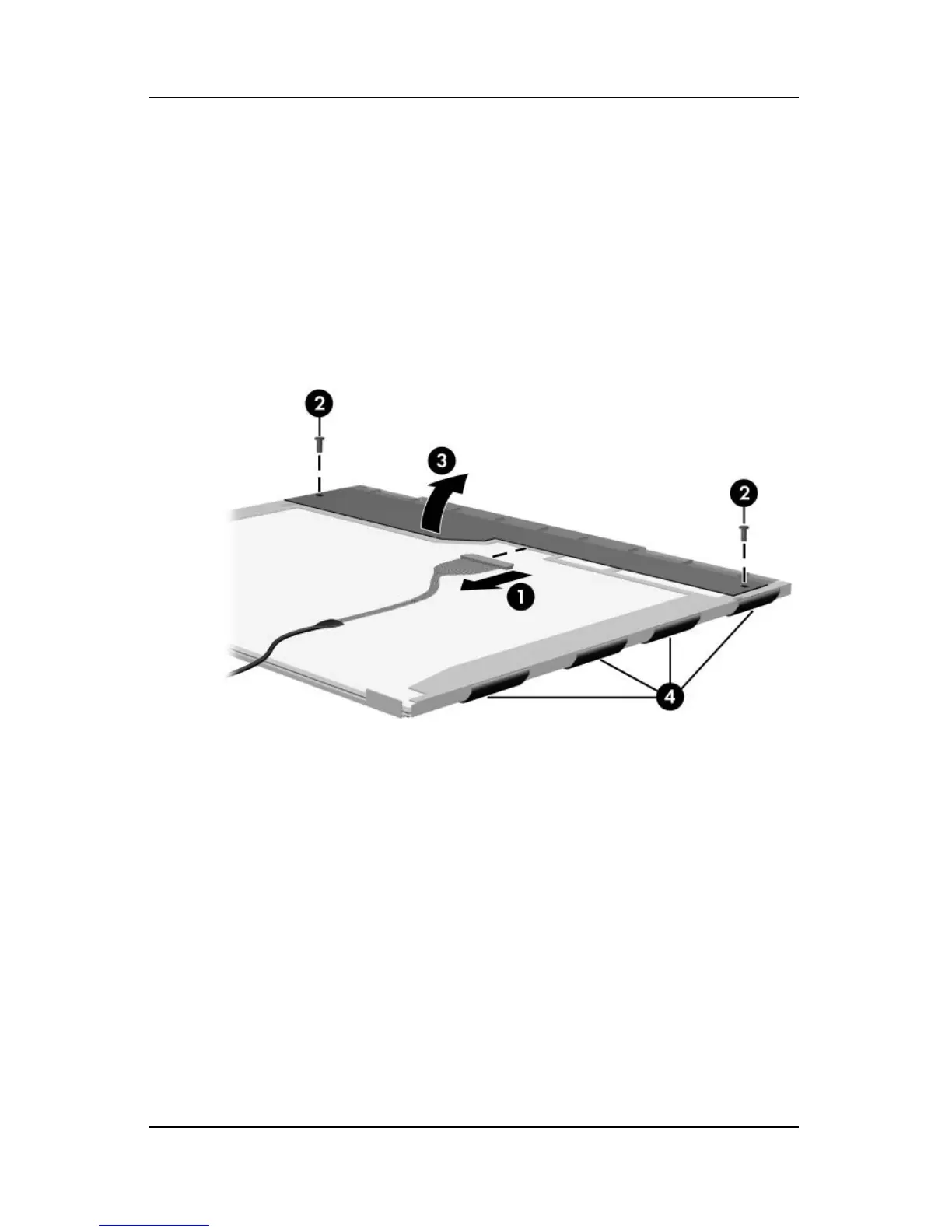

19.
Disconnect the display cable
1
from the LCD panel.
20.
Remov
e the scre
ws
2
that secure the LCD panel to the
display rear panel.
21.
Release the LCD panel
3
from the display rear panel.
22.
Release the tape
4
that secures the LCD panel to the display
rear panel.
R
eleasing the L
CD P
anel
230
232
